Second Row - Outboard

SECOND ROW - OUTBOARD

WARNING: To avoid serious or fatal injury during and following any seat belt or child restraint anchor service, carefully inspect all seat belts, buckles, mounting hardware, retractors, tether straps, and anchors for proper installation, operation, or damage. Replace any belt that is cut, frayed, or torn. Straighten any belt that is twisted. Tighten any loose fasteners. Replace any belt that has a damaged or ineffective buckle or retractor. Replace any belt that has a bent or damaged latch plate or anchor plate. Replace any child restraint anchor or the unit to which the anchor is integral that has been bent or damaged. Never attempt to repair a seat belt or child restraint component. Always replace damaged or ineffective seat belt and child restraint components with the correct, new and unused replacement parts listed in the Chrysler Mopar(R) Parts Catalog.

NOTE: All seat belt retractors except the driver side front retractor include a switchable automatic locking mechanism. Seat Belt Retractor - Description .





1. Remove the rear seat cushion from the vehicle. Seat Cushion Cover - Removal.

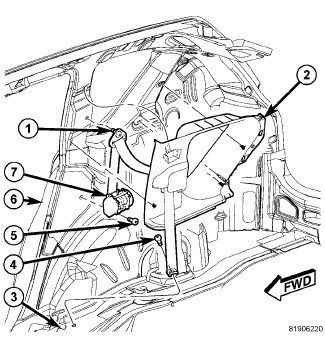

2. Remove the screw (4) that secures the second row outboard seat belt lower anchor to the rear floor panel (3).
3. Remove the upper trim (2) from the inside of the C-pillar (6). C-Pillar Trim Panel - Removal.
4. Pull the seat belt lower anchor through the seat belt opening in the upper C-pillar trim.
5. Remove the screw (1) that secures the seat belt turning loop to the upper C-pillar.
6. Remove the seat belt turning loop from the upper C-pillar.
7. Move the trim from the front of the quarter inner panel far enough to access the seat belt retractor (7). Rear Quarter Trim Panel - Removal.
8. Remove the screw (4) that secures the retractor (1) to the lower C-pillar.
9. Remove the second row outboard seat belt and retractor from the lower C-pillar as a unit.
