Second Row - Center

SECOND ROW - CENTER

WARNING: To avoid serious or fatal injury during and following any seat belt or child restraint anchor service, carefully inspect all seat belts, buckles, mounting hardware, retractors, tether straps, and anchors for proper installation, operation, or damage. Replace any belt that is cut, frayed, or torn. Straighten any belt that is twisted. Tighten any loose fasteners. Replace any belt that has a damaged or ineffective buckle or retractor. Replace any belt that has a bent or damaged latch plate or anchor plate. Replace any child restraint anchor or the unit to which the anchor is integral that has been bent or damaged. Never attempt to repair a seat belt or child restraint component. Always replace damaged or ineffective seat belt and child restraint components with the correct, new and unused replacement parts listed in the Chrysler Mopar(R) Parts Catalog.

NOTE: All seat belt retractors except the driver side front retractor include a switchable automatic locking mechanism. Seat Belt Retractor - Description .

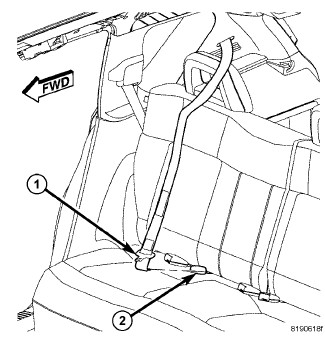

1. If the second row center seat belt lower anchor (1) is connected, access and unbuckle the lower anchor latch plate from the unique, keyed lower anchor buckle (2). Use an ignition key or a small screwdriver to depress the small latch release button on the anchor buckle.

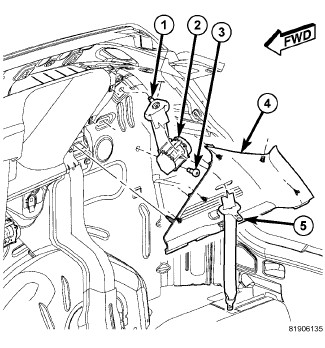

2. Remove the upper trim (4) from the inside of the right D-pillar.
3. Pull the second row center seat belt latch plate and lower anchor (5) through the seat belt opening in the right upper D-pillar trim.
4. Remove the screw (1) that secures the seat belt turning loop to the right upper D-pillar.
5. Remove the screw (3) that secures the retractor (2) lower bracket to the right quarter inner panel.
6. Remove the second row center seat belt and retractor unit from the right quarter inner panel.
