Second Row - Center And Left

SECOND ROW - CENTER AND LEFT

WARNING: To avoid serious or fatal injury during and following any seat belt or child restraint anchor service, carefully inspect all seat belts, buckles, mounting hardware, retractors, tether straps, and anchors for proper installation, operation, or damage. Replace any belt that is cut, frayed, or torn. Straighten any belt that is twisted. Tighten any loose fasteners. Replace any belt that has a damaged or ineffective buckle or retractor. Replace any belt that has a bent or damaged latch plate or anchor plate. Replace any child restraint anchor or the unit to which the anchor is integral that has been bent or damaged. Never attempt to repair a seat belt or child restraint component. Always replace damaged or ineffective seat belt and child restraint components with the correct, new and unused replacement parts listed in the Chrysler Mopar(R) Parts Catalog.

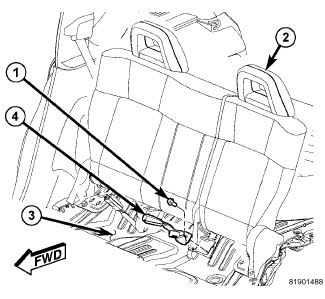

1. Position the center and left seat belt buckle unit (4) anchor plate onto the left seat back (2) hinge bracket on the rear floor panel (3).
2. Install and tighten the screw (1) that secures the anchor plate and buckles and the left center seat back hinge bracket to the rear floor panel. Tighten the screw to 58 Nm (43 ft. lbs.).
3. Reinstall the second row seat cushion onto the rear floor panel. Seat Cushion Cover - Installation.
