Removal






REMOVAL





1. Disconnect the negative battery cable.

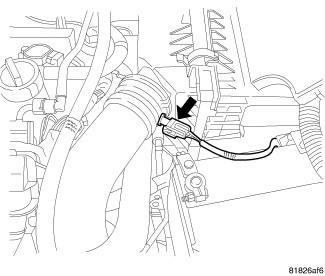

2. Disconnect electrical connector from sensor.
3. Remove the sensor clean air duct.
