Installation

INSTALLATION

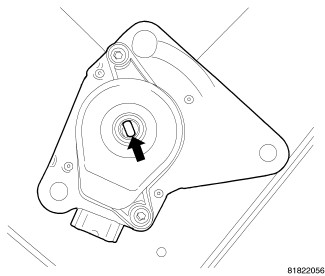

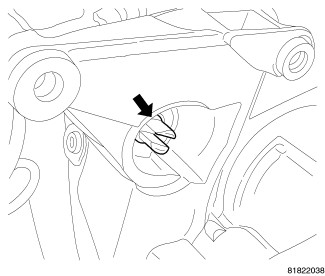

1. Make sure that slot in shaft is not damaged.





2. Make sure that tab in valve is not damaged.

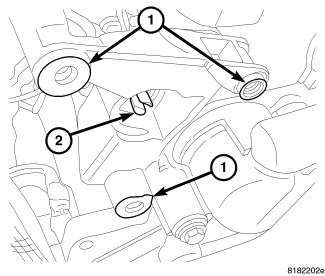

3. Align tab in valve with slot in intake manifold shaft (2) and rotate valve counter clock wise until valve drops onto location pin mounting (1).

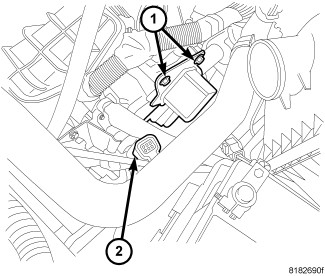

4. Install mounting bolts (1) and tighten to 6 Nm (53 in. lbs.).
5. Connect electrical connector (2).
6. Install air tube.
7. Connect negative battery cable.
