Removal

REMOVAL






NOTE: Drain fuel tank if it is more than half full.

1. Remove the negative battery cable.
2. Loosen fuel filler tube cap.
3. Raise vehicle and support.





4. Remove the left rear wheel.

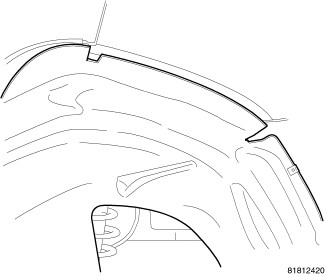

5. Remove the inner splash shield.

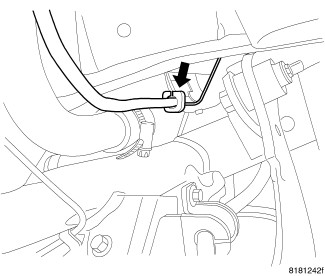

6. Disconnect filler tube recirculation vent line.





7. Disconnect fuel filler tube hose from fuel tank neck.

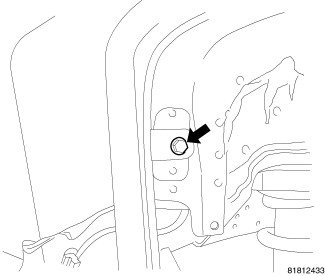

8. Remove filler tube mounting screw.

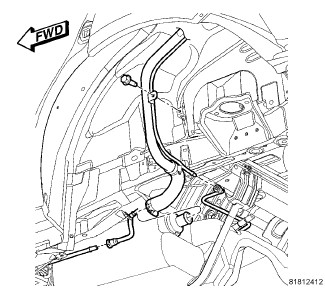

9. Remove fuel filler tube assembly.
