Positive Crankcase Ventilation (PCV) Valve - Removal
Positive Crankcase Ventilation (PCV) Valve - Removal
REMOVAL
1.
Remove the engine cover.
2.

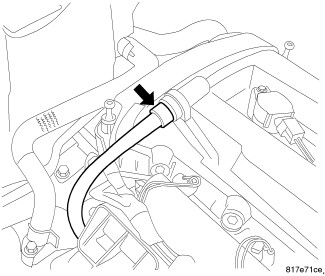

Remove the hose from the PCV valve.
3.
Unscrew the PCV valve.
