EGR Cooler - Installation

INSTALLATION





1. Clean all gasket mating surfaces.

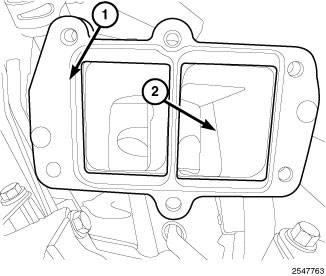

2. Install a new gasket (1) onto the EGR body (2).

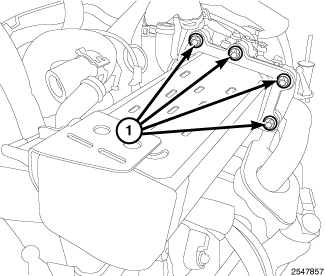

3. Install EGR cooler. Tighten bolts (1) to 9 Nm (80 in. lbs.).

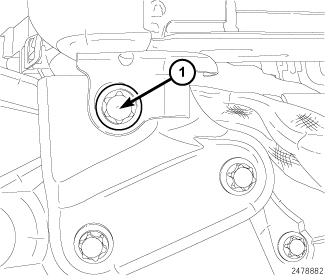

4. Install the lower EGR cooler bolt (1). Tighten to 9 Nm (80 in. lbs.).
5. Install the A/C connector mounting bracket.

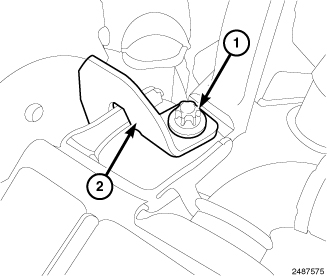

6. Install the upper EGR cooler bolt. Tighten bolt to 9 Nm (80 in. lbs.).

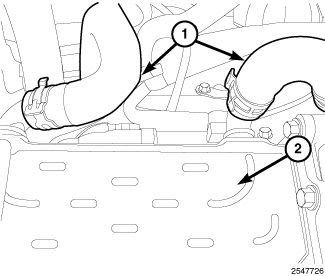

7. Connect coolant hoses (1) to the EGR cooler (2).
8. Fill cooling system Service and Repair
9. Install engine cover.
10. Connect the negative battery cable.
