Evap Purge Solenoid - Installation

INSTALLATION

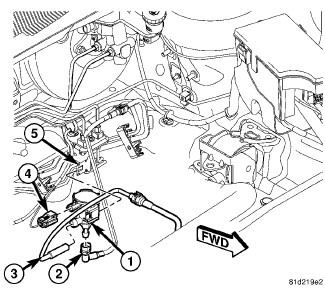

1. Install evaporator purge solenoid (1) to body bracket (5). Make sure the tab secures the solenoid to the bracket.
2. Install quick connect fuel tank hose (2) to evaporator purge solenoid (1).
3. Install purge hose (3) to evaporator purge solenoid (1).
4. Connect electrical connector (4) to evaporator purge solenoid (1).
5. Connect negative battery cable, tighten nut to 5 Nm (45 in. lbs.).
