Tail Lamp Bulb - Removal

BULBS

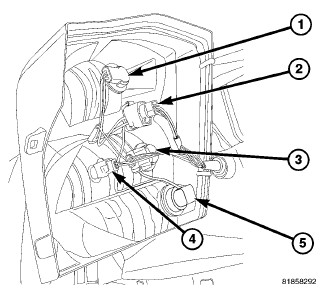

There are a total of four possible bulbs in the tail lamp unit:

- Back-Up Lamp (4)
- Park/Brake Lamp (1)
- Rear Fog Lamp (5) - Export Only
- Turn Signal (3)





1. Remove the tail lamp unit Tail Lamp - Removal.

NOTE: It is not necessary to completely remove the tail lamp unit. Once loosened from quarter panel, there should be enough room to service any of the bulbs.

2. Disconnect the electrical connector.

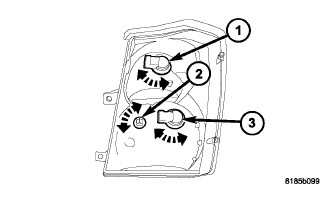

3. Remove bulb socket from tail lamp unit by twisting a quarter turn counterclockwise.
4. Pull socket straight out of tail lamp unit.
5. Pull bulb from socket.
