Tail Lamp - Removal

UNIT

DOMESTIC





1. Disconnect and isolate the battery negative cable.

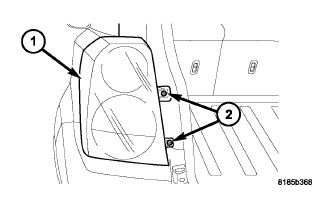

2. Using a trim stick or equivalent, pry out the two push pins (2) retaining the tail lamp unit (1).

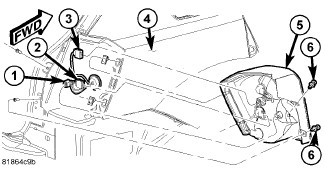

3. Pull straight back on the tail lamp unit (5) to release it from the quarter panel (4).
4. Disconnect the three electrical connectors (1, 2, and 3) to the tail lamp unit (5).
5. Remove the tail lamp unit (5) from the vehicle.
6. Remove the bulb sockets from the lamp unit by rotating the sockets counterclockwise, and then pull straight out of the unit.

EXPORT

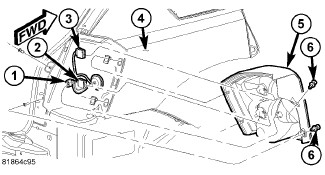

The BUX tail lamp unit comes out the same way as the domestic, with the difference being the location of the electrical connectors (1, 2, and 3). They incorporate a rear fog lamp in the tail lamp assembly.
