License Plate Lamp - Removal






UNIT

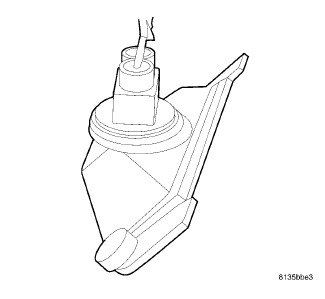

1. Using a trim stick or equivalent, gently pry on the side (2) of the license plate lamp unit (1) to release it from the liftgate.





2. Remove lamp (1) from liftgate.





3. Twist the bulb socket 1/4 turn counter-clockwise and remove from license lamp unit.
