Horn - Installation

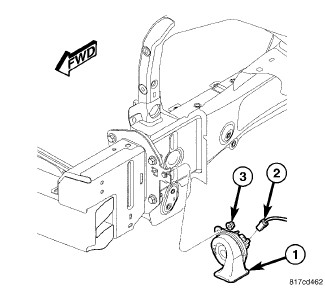

INSTALLATION
1.
Install the fastener securing the
horn
to the vehicle.
2.
Connect the harness connector.
3.
Install the left or right front wheelhouse splash shield.
4.
Connect the battery negative cable.
