Fog Lamp Bulb - Installation

BULB

CAUTION: Always use the correct bulb size and type for replacement. An incorrect bulb size or type may overheat and cause damage to the lamp, the socket or the lamp wiring.

CAUTION: Do not contaminate the bulb glass by touching it with your fingers or by allowing it to contact other oily surfaces. Shortened bulb life will result.

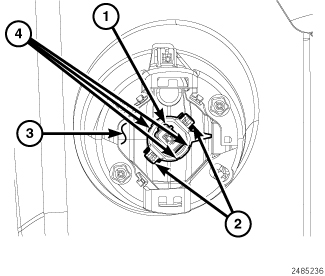

1. Reach up behind the front fascia to access and align the index tabs (4) of the front fog lamp bulb with the slots in the collar of the bulb opening on the back of the front fog lamp housing (3).
2. Insert the bulb into the housing until the index tabs are engaged in the slots of the collar.
3. Firmly and evenly push the bulb straight into the lamp housing until both bulb latch features (2) snap into place and are fully engaged.
4. Reconnect the engine compartment wire harness connector to the front fog lamp bulb connector receptacle (1).





5. Position the front of the front wheel house splash shield (4) to the front fascia (2) closure panel and secure it with two push pin fasteners (3).
6. Install the push pin fastener (3) that secures the inboard side of the splash shield to the front end sheet metal.
7. Install and tighten the three screws (1) that secure the outboard side of the splash shield to the front fascia. Tighten the screws to 2 Nm (19 in. lbs.).
8. Reinstall the front wheel and tire. Tires And Wheels - Installation.
9. Lower the vehicle.
10. Reconnect the battery negative cable.
