Instrument Cluster Indicators - Description

DESCRIPTION

NOTE: The Electronic Stability Control (ESC) may also be referred to as Electronic Stability Program (ESP) depending on the vehicle model year and configuration. Certain components may also reference ESP, ESC, or use the traction control symbol.

DOMESTIC CLUSTER/CCN





The instrument cluster has provisions for up to 24 International Control and Display Symbol icon indicators and houses 4 analog gauges, Gauge Pack - Description. Some of the indicators are automatically configured when the instrument cluster is connected to the vehicle electrical system for compatibility with certain optional equipment or equipment required for regulatory purposes in certain markets. While each instrument cluster may have provisions for indicators to support every available option, the configurable indicators will not be functional in a vehicle that does not have the equipment that an indicator supports.

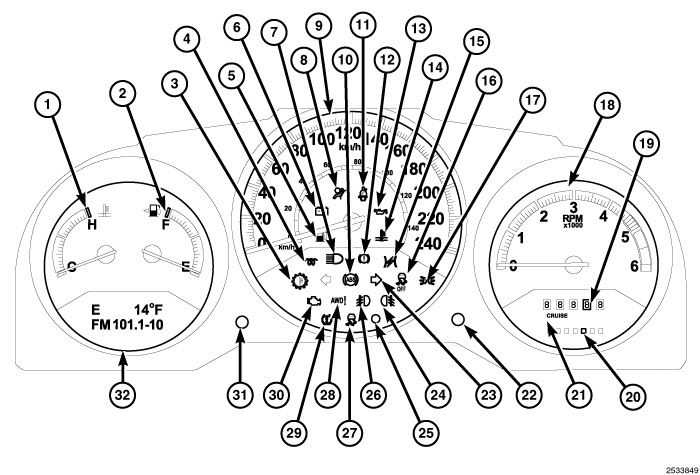

The CCN includes provisions for the following indicators:

- Airbag Warning Indicator (8)
- All Wheel Drive Indicator (28) - if equipped
- Antilock Brake System (ABS) Warning Indicator (10)
- Park Brake/Brake Indicator (12)
- Charging System Warning Indicator (6)
- Cruise Indicator (21)
- Electronic Stability Control (ESC) System OFF Indicator (16)
- Electronic Throttle Control (ETC) Indicator (15)
- Electronic Vehicle Information Center (EVIC) Display Step Button (31)
- High Beam Indicator (24)
- High Engine Temperature Warning Indicator (14)
- Low Fuel Indicator (5)
- Malfunction Indicator Lamp (MIL) (30)
- Odometer/Trip Odometer A/B Select Button (22)
- Oil Pressure Warning Indicator (13)
- Seatbelt Indicator (11)
- Security Indicator (25)
- Tire Pressure Monitor System Indicator (29)
- Electronic Stability Control (ESC) System Activation Indicator Light (27) - If Equipped
- Transmission Over Temperature Indicator (CVT transmission only) (3)
- Turn Signal (Right and Left) Indicators (23)

BUX CLUSTER/CCN





The BUX CCN is relatively the same as domestic for the exception of:

- Brake Fail/Park Brake Indicator (10)
- Rear Fog lamps Indicator (24)
- Speedometer - kilometers per hour (km/h) (9)

Each indicator in the instrument cluster, except those located within a VFD unit, is illuminated by a dedicated LED that is soldered onto the instrument cluster electronic circuit board, also known as the Cab Compartment Node (CCN). Cluster illumination is accomplished by several dimmable LED units, which illuminate each of the gauge dial faces for visibility when the ignition switch is in the ON or START positions, or when the exterior lighting is turned ON. These LED units are not available for service replacement, and if damaged or inoperative, the entire CCN must be replaced.
