Air Inlet Housing

HOUSING-AIR INLET

NOTE: LHD model with A/C shown in illustrations. RHD and heater-only models similar.





1. Carefully install the recirculation-air door (1) into the air inlet housing (2) by pinching the two ends of the air-door together and aligning the pivot shafts of the air-door to the pivot shaft holes in the air inlet housing.

NOTE: Install the recirculation door pivot shaft adapter by carefully pushing it straight into the end of the recirculation door pivot shaft.

2. Install the recirculation door pivot shaft adapter (3) into the right side pivot shaft of the recirculation air-door. Make sure the adapter is fully engaged to the pivot shaft.

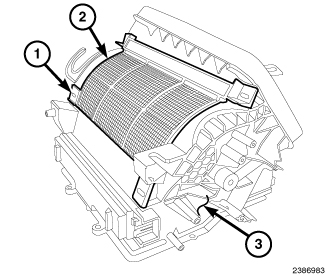

3. Position the recirc air screen (2) to the air inlet housing (3) and engage the retaining tab (1) at each corner of the screen. Make sure the retaining tabs are fully engaged to the housing.





4. Position the recirculation door actuator (1) to the right side of the HVAC air inlet housing (2).
5. Install the recirculation door actuator onto the air inlet housing. If necessary, rotate the actuator slightly to align the splines on the actuator output shaft (3) with those on the recirculation door pivot shaft adapter (4).

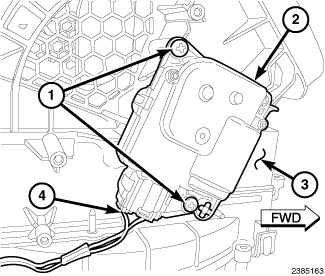

6. Install the screws (1) that secure the recirculation door actuator (2) to the air inlet housing (3). Tighten the screws to 2 Nm (17 in. lbs.).





7. Install the air inlet housing (3) onto the HVAC housing (1) HVAC Housing - Installation.
8. Install the HVAC housing assembly HVAC Housing - Installation.
