INSTRUMENT PANEL

NOTE: Take the proper precautions to protect the face of the instrument panel cover from cosmetic damage while performing this procedure.

NOTE: Driver side air outlet shown. Passenger side similar.






NOTE: If the foam seal on the air outlet is deformed or damaged, it must be replaced.

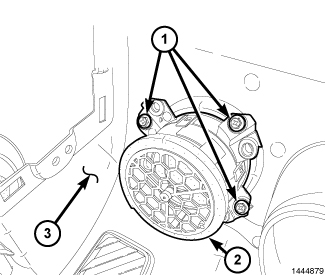

1. Position the air outlet (2) onto the cover (3).
2. Install the three screws (1) that secure the air outlet. Tighten the screws to 2 Nm (17 in. lbs.).

NOTE: To prevent air leaks and excessive noise during A/C-heater operation, make sure the foam seal on the air outlet is properly positioned into the duct.

3. Install the instrument panel covers Instrument Panel Pad - Installation.
4. Reconnect the negative battery cable.
