Instrument Panel Duct - Installation

INSTALLATION

NOTE: LHD model shown in illustrations. RHD model similar.

DRIVER SIDE DUCT ASSEMBLY

NOTE: The driver side instrument panel duct is serviced only as an assembly with the driver side demister duct.

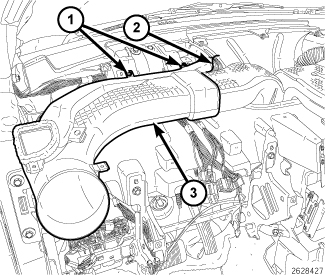

1. Position the driver side duct assembly (3) to the instrument panel.
2. Install the two screws (1) that secure the driver side duct assembly to the instrument panel support. Tighten the screws to 2.2 Nm (20 in. lbs.).
3. Connect the driver side demister hose (2) to the driver side duct assembly.
4. Install the instrument base panel Instrument Panel - Installation.
5. Install the instrument panel covers Instrument Panel Pad - Installation.
6. Reconnect the negative battery cable.

CENTER AND PASSENGER SIDE DUCT

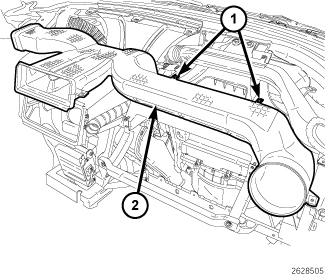

1. Position the center and passenger side instrument panel duct to the instrument panel.
2. Install the two screws (1) that secure the center and passenger side instrument panel duct (2) to the instrument panel support. Tighten the screws to 2.2 Nm (20 in. lbs.).
3. Install the driver side duct assembly (refer to DRIVER SIDE DUCT ASSEMBLY ).
4. Reconnect the negative battery cable.
