Exhaust Manifold - Removal

REMOVAL

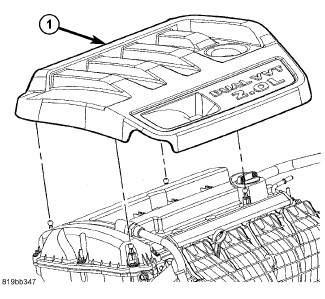

1. Remove engine cover (1).
2. Disconnect negative cable from battery.
3. Remove bolts attaching upper heat shield.
4. Remove upper heat shield.
5. Disconnect exhaust pipe from manifold.

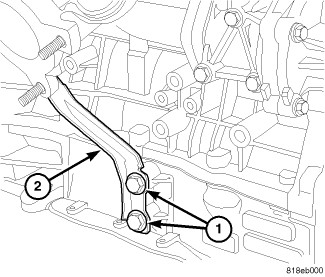

6. Remove manifold support bracket (2).

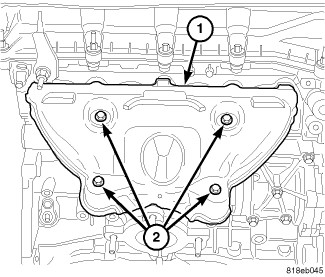

7. Remove exhaust manifold heat shield (1).





8. Disconnect oxygen sensor electrical connector.

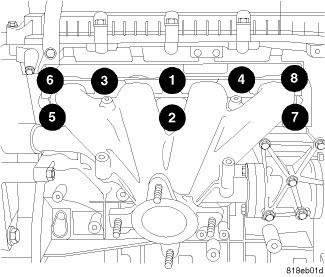

9. Remove exhaust manifold retaining fasteners.
10. Remove and discard manifold gasket.
