Coolant Recovery Bottle - Installation

GAS ENGINE

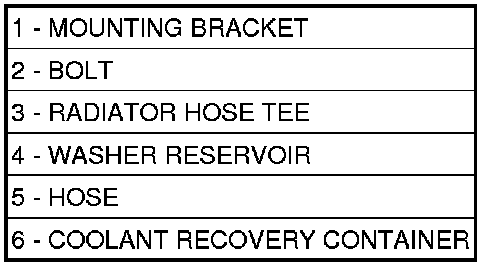

1. Position the coolant recovery container (6) into the washer fluid reservoir (4).
2. Install the coolant recovery container mounting bolt (2). Tighten the mounting bolt to 4 Nm (35 in. lbs.).
3. Connect the hose (5) at the upper radiator tee (3).
4. Fill coolant recovery container to proper level. Service and Repair
