Power Brake Booster - Installation

LEFT-HAND DRIVE






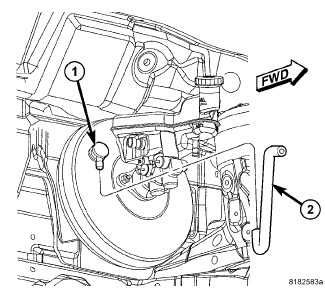

NOTE: Before power brake booster (1) installation, be certain a NEW dash seal (2) is installed on the booster mounting studs.






1. Install the power brake booster (3) by sliding the push rod and studs through the dash panel and into mounting position.
2. Under the instrument panel, install the four power brake booster mounting nuts (4). To tighten the nuts, refer to the following step.






CAUTION: Because of power brake booster design, it is very important to tighten the mounting nuts in the proper sequence.

3. Tighten the brake pedal/booster mounting nuts in the proper sequence to 23 Nm (17 ft. lbs.).





4. Using Mopar(R) Lubriplate, or an equivalent, coat the surface of the brake pedal pin (3) where it contacts the brake booster input rod (1).
5. Install the power brake booster push rod (1) on the pin (3) mounted on the side of the brake pedal. Install a NEW retaining clip (2) on the end of the pin. Do not reuse the old clip.

6. Install and adjust the stop lamp switch in the brake pedal bracket Stop Lamp Switch - Installation





7. Install the steering column opening cover reinforcement (1) in the steering column opening. Install the mounting screws (2).

8. Install the steering column opening cover (and airbag if equipped) on the instrument panel. Steering Column Opening Cover - Installation






CAUTION: When installing the vacuum hose on the check valve (1), make sure the hose is routed properly to avoid possible contact with unfriendly surfaces.

9. Connect the vacuum hose (2) to the vacuum check valve (1).
10. Install the master cylinder. Brake Master Cylinder - Installation
11. Connect the battery negative cable to its post on the battery.
12. Bleed the base brake system if necessary. Service and Repair

WARNING: Be certain a firm brake pedal is achieved prior to attempting to operate the vehicle.

13. Road test the vehicle to ensure proper operation of the brakes.
