Installation

INSTALLATION

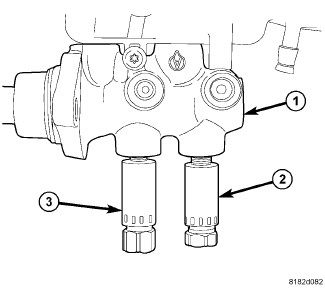

1. Install the proportioning valve (2 or 3) in its master cylinder (1) port. Tighten the proportioning valve to 30 Nm (22 ft. lbs.).

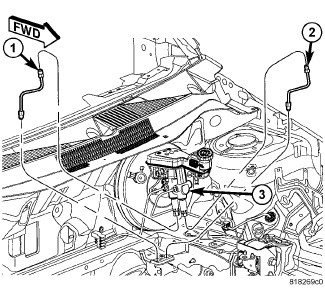

2. Install the correct brake tube (1 or 2) to the proportioning valve. Tighten the tube nut to 17 Nm (150 in. lbs.).





3. Remove the brake pedal holder.
4. Bleed the affected brake line(s). Service and Repair
5. Road test the vehicle to ensure proper operation of the brakes.
