Front

ASSEMBLY






NOTE: Seat mechanical part description and specifications are found in seat description Front Seat - Description .

1. Place lumbar mat onto seat back frame and insert the upper support wires (1) into the frame.

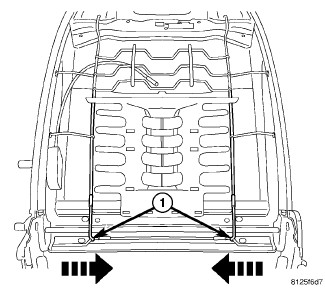

2. Squeeze the lower support wires (1) together and insert into the lower frame.

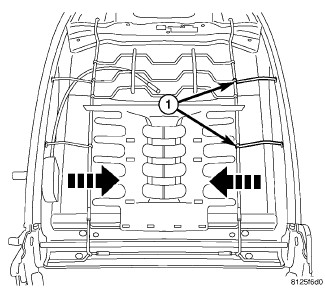

3. Squeeze the side support wires together and insert them into the sides of the seat back frame.

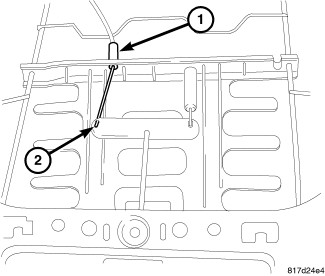

4. Connect the lumbar cable housing (1) and connect the cable end (2) to the anchor.

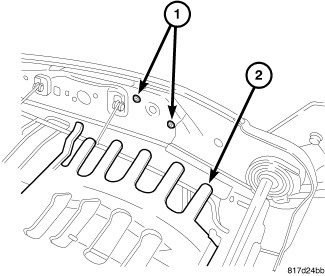

5. Install the lumbar adjuster and install the adjuster screws (1).





6. Position the seat back cushion on the frame and position the cover over the cushion.

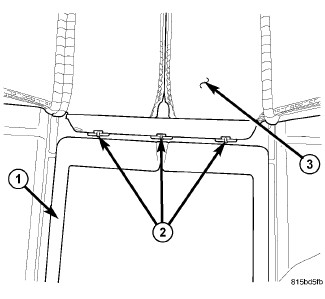

7. Attach the seat cover (3) to the seat back cushion (1) and install new hog rings (2) as required.

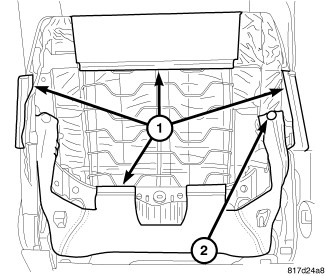

8. Install the push pins (1) and connect the inner cover to the hooks (2).

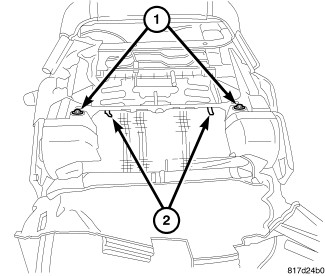

9. Install the push-pin fasteners (2) and connect the J-straps (1).





10. Install the headrest sleeves (2).

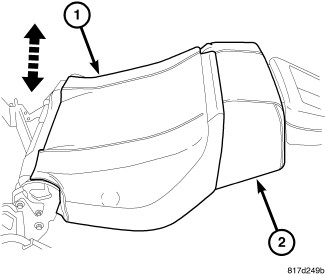

11. Position the seat back panel (1) onto the seat back (2) and seat fully.





12. Install the active head restraint headrest (1), Active Head Restraint - Installation.
13. Install the seat back, Seat Back - Installation.
