Seat Back: Description and Operation






DESCRIPTION

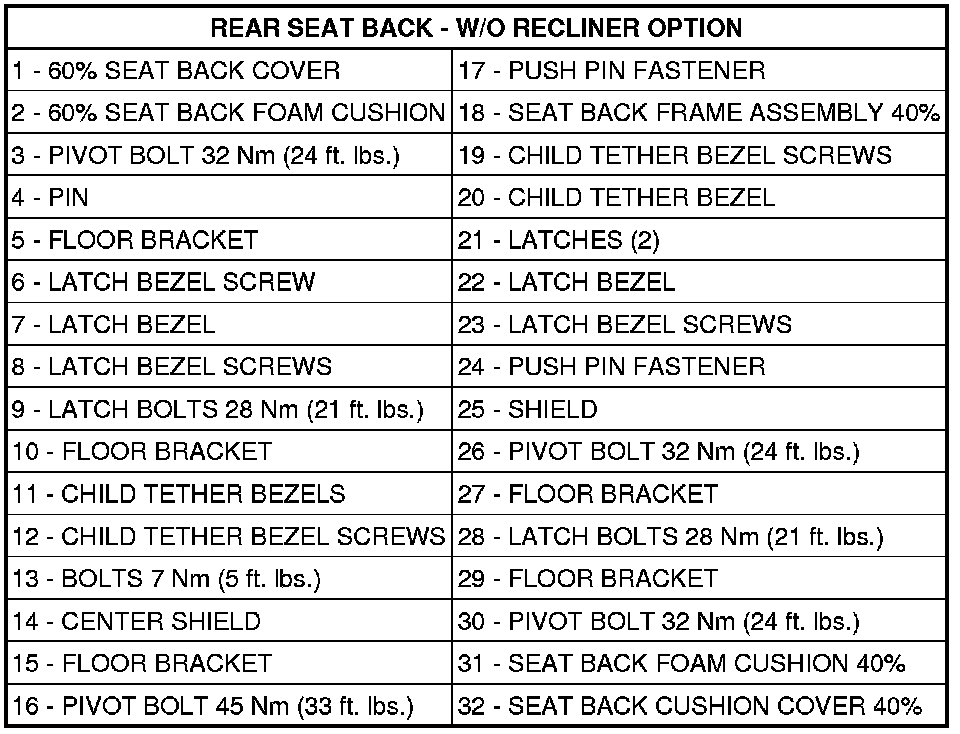

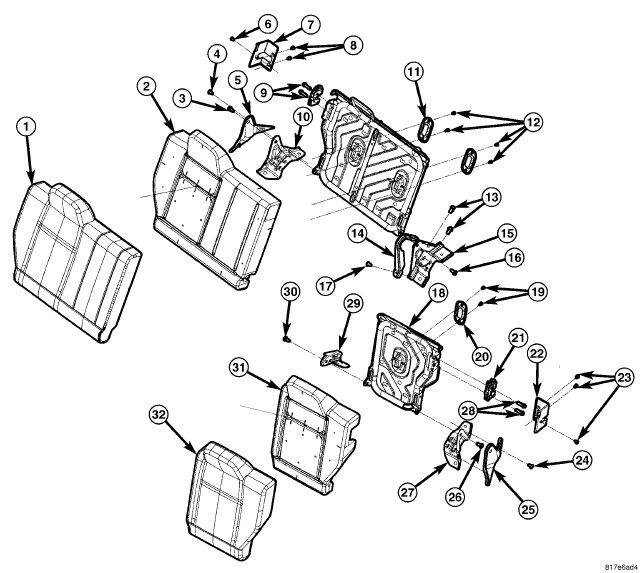

Figure 1 - REAR SEAT BACK - W/O RECLINER OPTION

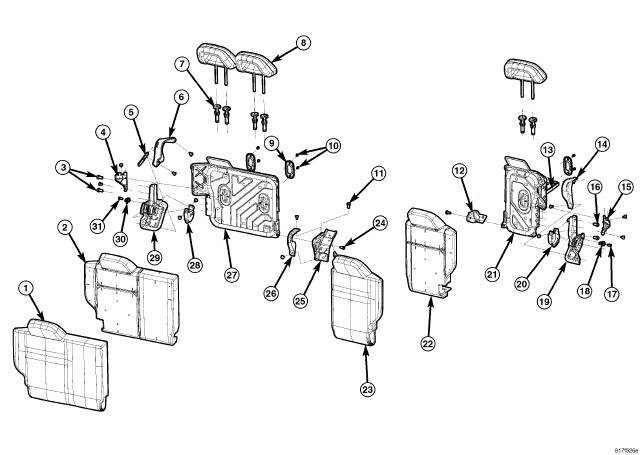

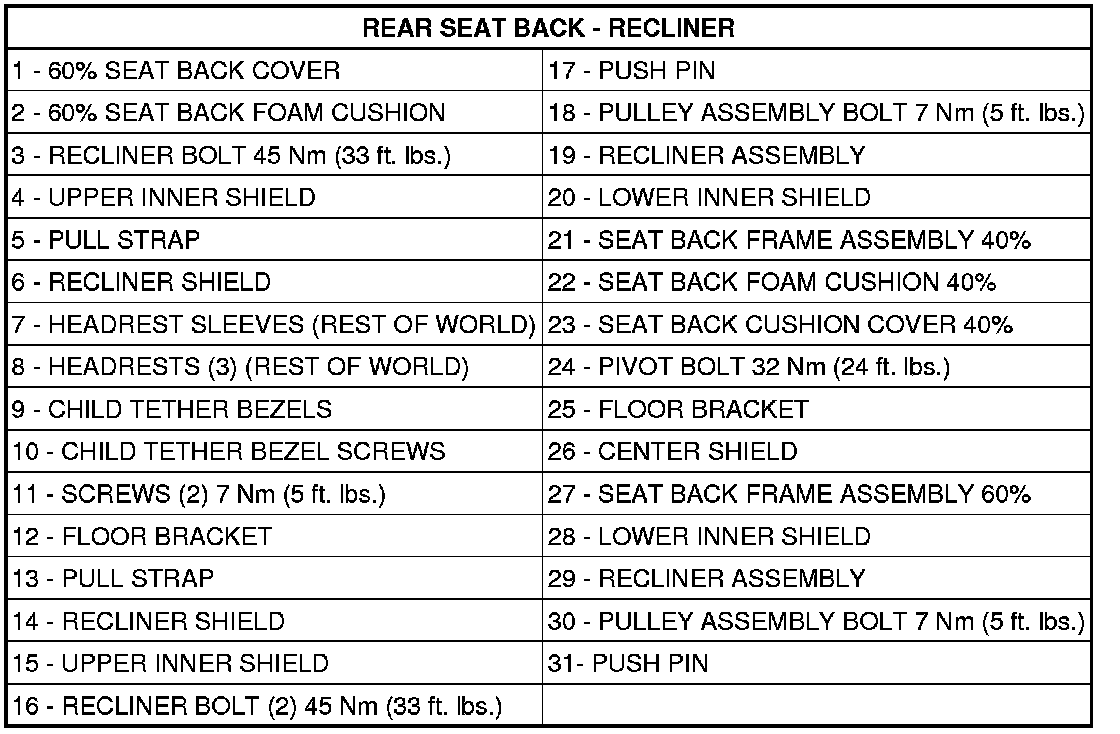

Figure 2 - REAR SEAT BACK - RECLINER
