Front Seat - Description
Front Seat - Description
DESCRIPTION

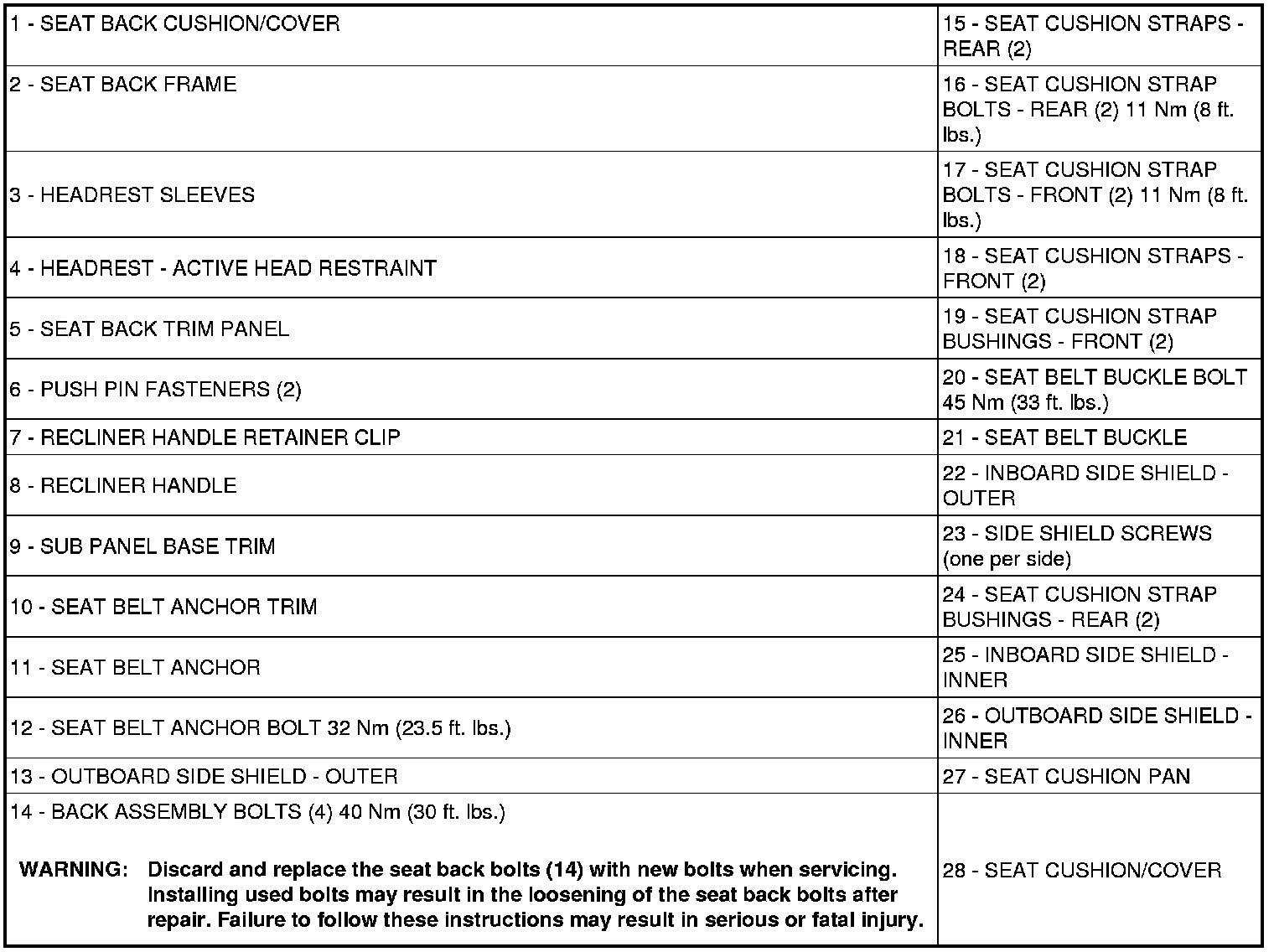

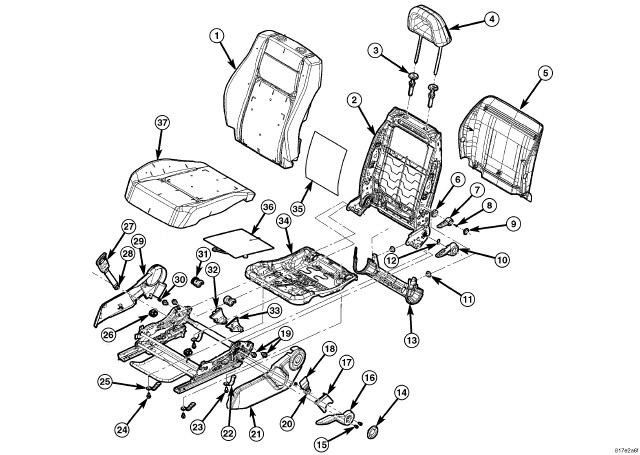

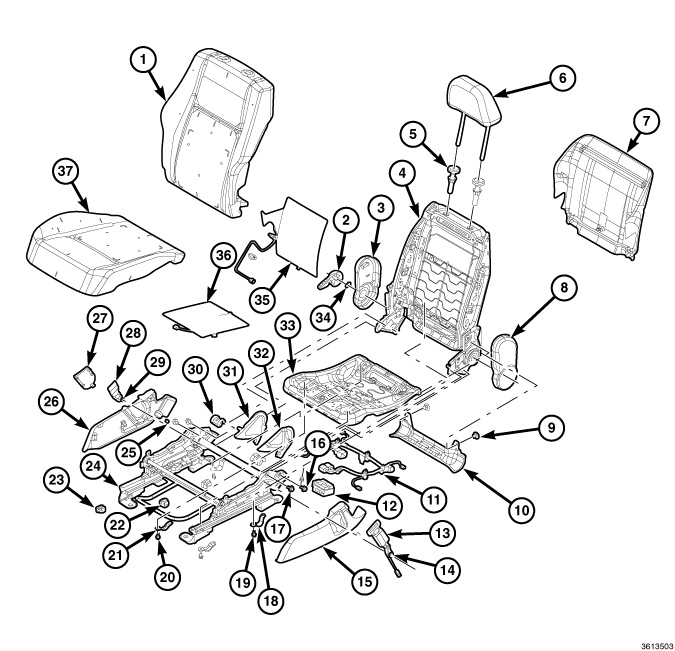

Figure 1 - 2-WAY DRIVER SEAT

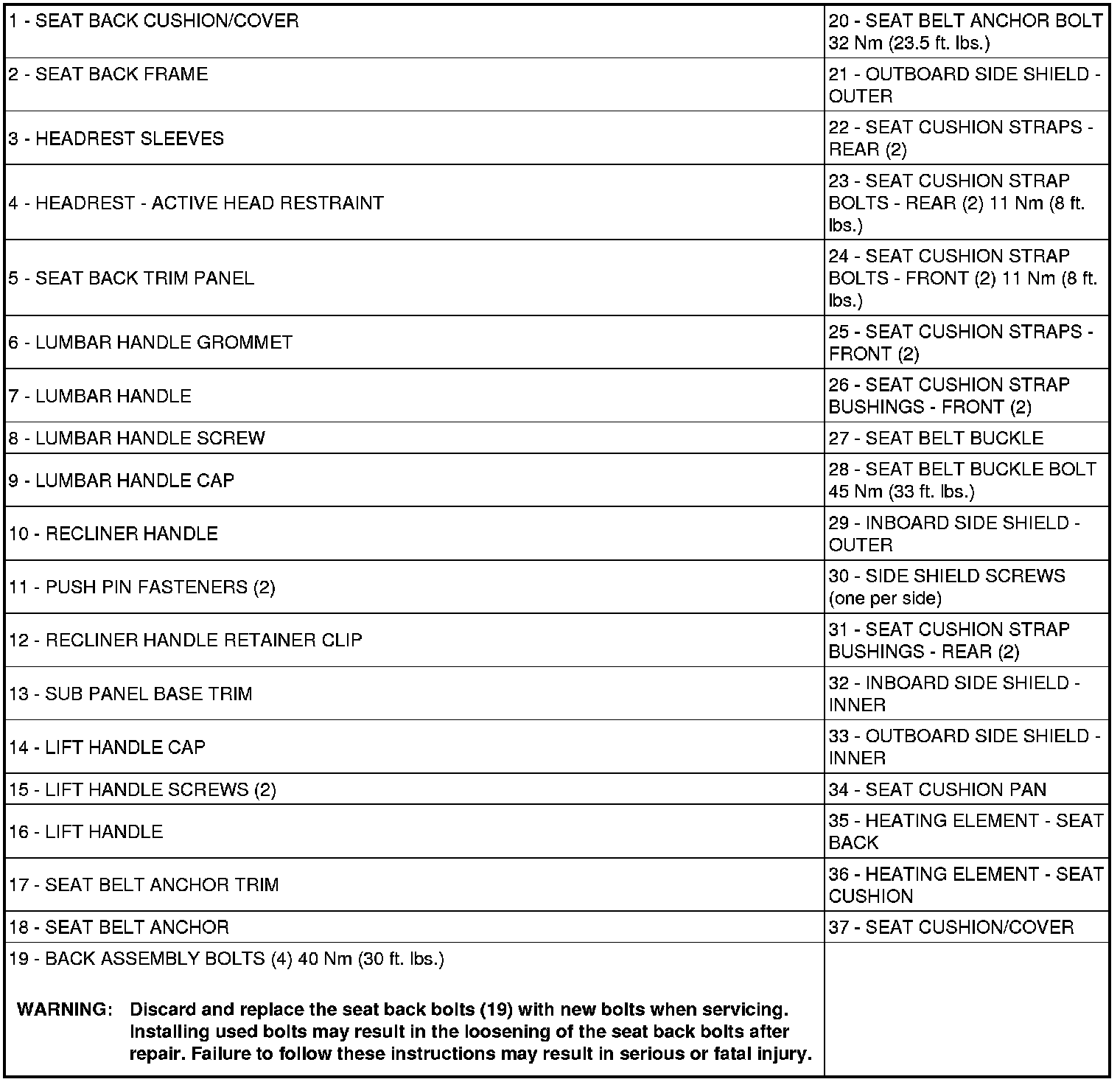

Figure 2 - 4-WAY DRIVER SEAT

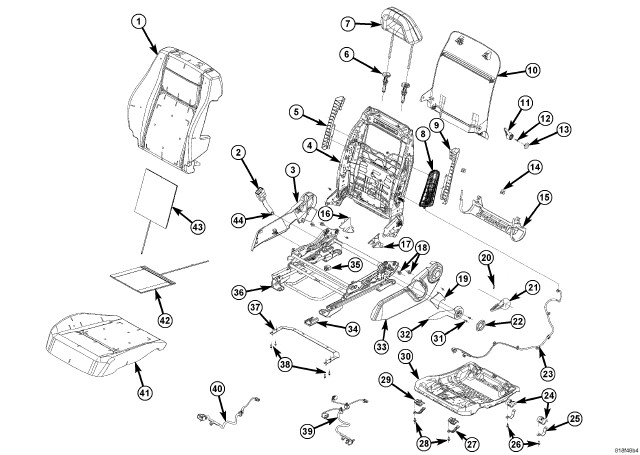

Figure 3 - PASSENGER FOLD FLAT SEAT

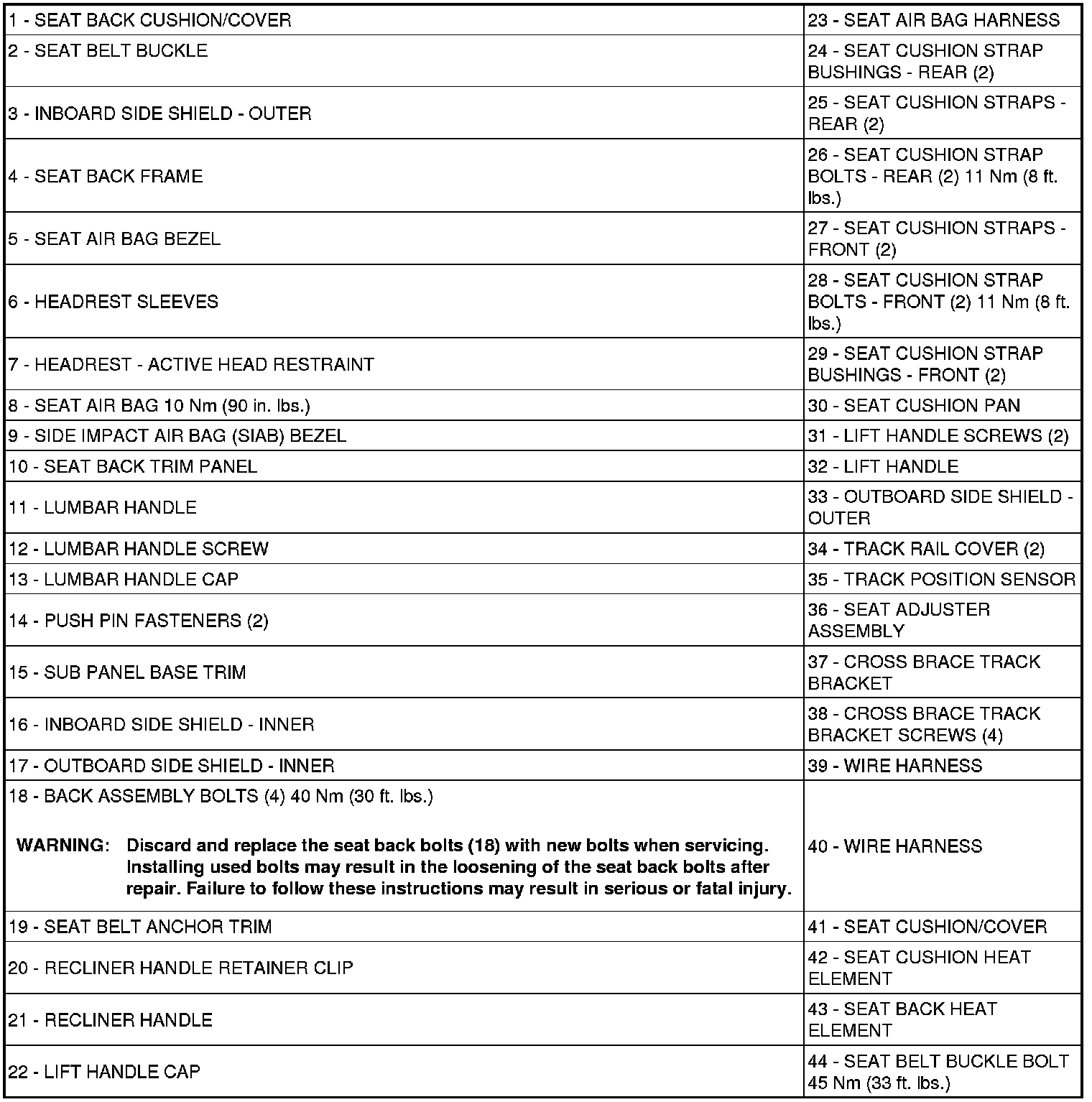

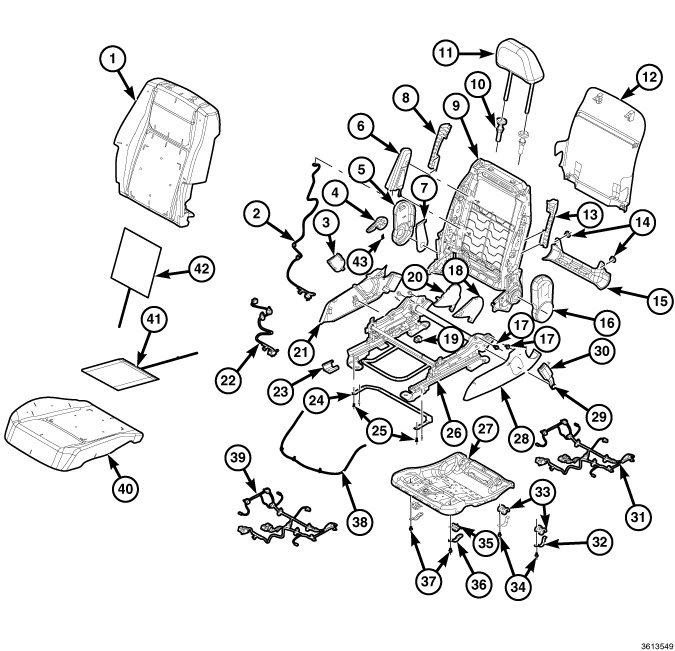

Figure 4 - PASSENGER FOLD FLAT W/AIR BAG

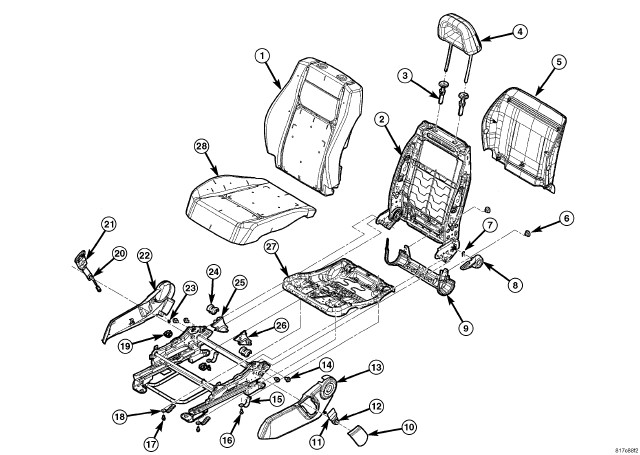

Figure 5 - 4-WAY DRIVER W/AIR BAG
