Scuff Plate - Removal
>>
Liftgate Sill
Liftgate Sill
REMOVAL

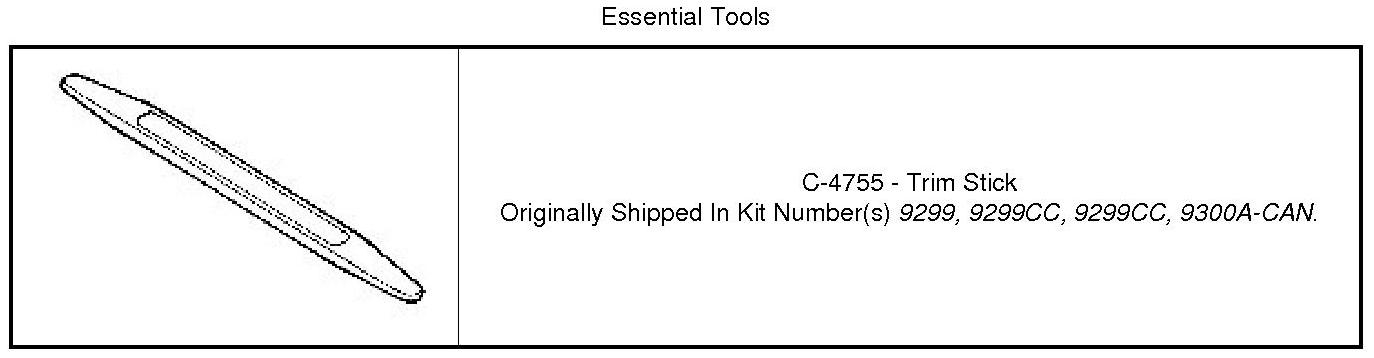

Special Tools:
1.
Using trim stick or equivalent, pry up on each
scuff plate
clip location hole (2).
2.
Remove
scuff plate
(1).
