Door Sill






REMOVAL

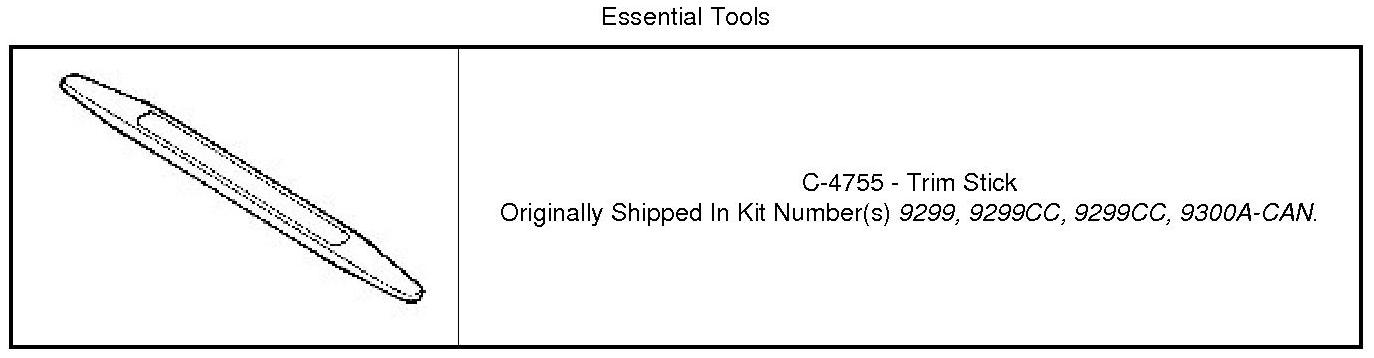

Special Tools:

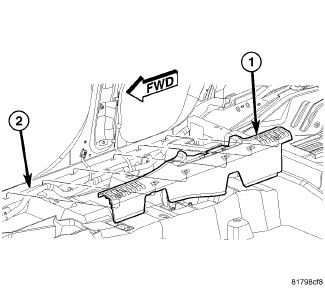

1. Using trim stick , pry up scuff plate.
2. Remove scuff plate from vehicle.
