Headliner - Removal

REMOVAL





1. Remove front windshield. Windshield - Removal
2. Remove A-pillar trim. A-Pillar Trim Panel - Removal

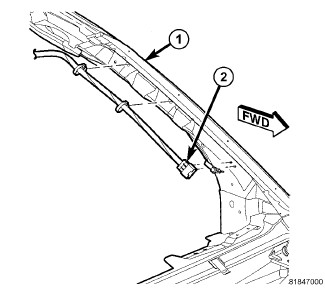

3. Disconnect A-pillar trim wire connector (2).
4. Remove sunvisors. Visor - Removal
5. Remove sun visor screws and retainers. Universal Transmitter - Removal

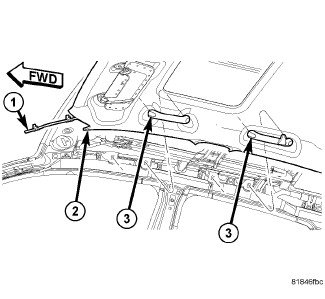

6. Disconnect front washer hose (1).
7. Remove universal homelink module and connector. Universal Transmitter - Removal
8. Remove and disconnect dome lamp. Dome Lamp - Removal
9. Remove front and rear grab handles (3).
10. Remove seat belt turning loops.
11. Remove B-pillar upper trim. B-Pillar Trim Panel - Removal
12. Remove B-pillar lower trim. B-Pillar Trim Panel - Removal
13. Remove fastener attaching cargo loop to rear quarter trim.
14. Remove rear seat striker bezel.
15. Remove C-pillar trim. C-Pillar Trim Panel - Removal
16. Remove rear quarter trim. Rear Quarter Trim Panel - Removal
17. Remove cargo load floor. Cargo Floor Cover - Removal
18. Remove liftgate scuff plate.
19. Remove rear cargo dome light and disconnect connector. Dome Lamp - Removal
20. Remove rear headliner push pins.
21. Disconnect rear washer hose connector
22. Lower headliner.
23. With the help of an assistant, remove headliner through front windshield opening.
