Instrument Panel End Cap - Removal






REMOVAL

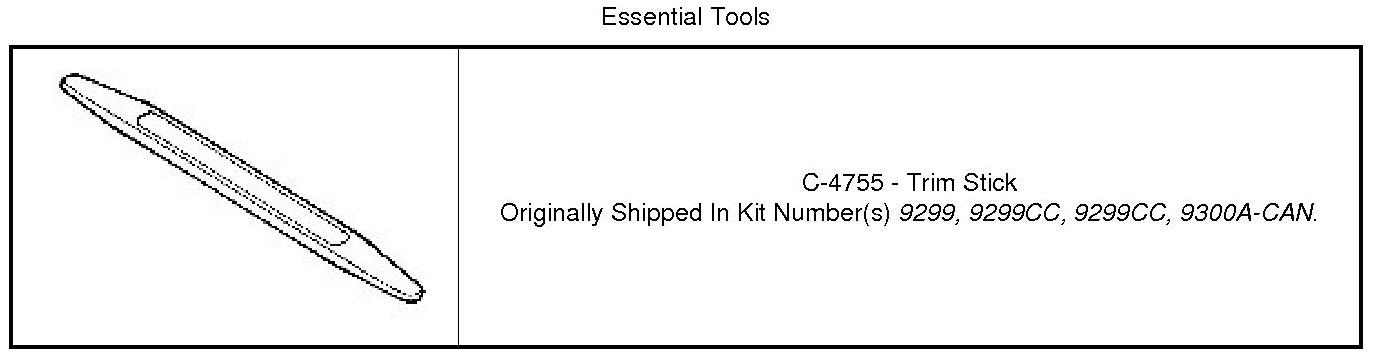

Special Tools:

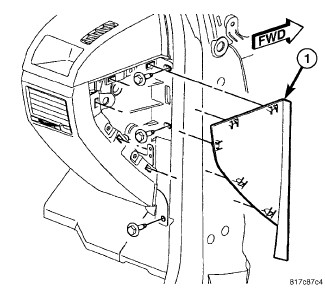

NOTE: Right hand shown. Left hand similar.

1. Using trim stick , pry up end cap (1) and remove.
