Instrument Panel Bin - Installation





INSTALLATION

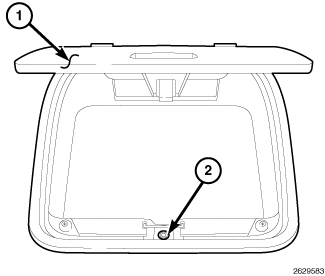

1. Install the rear of the bin down into the instrument panel and seat the bin fully.
2. Install the screw (2).
