Body Cladding - Removal

REMOVAL





1. Remove the end screws (3) from the cladding (2). Two screws in the front and one screw in the rear wheel well.

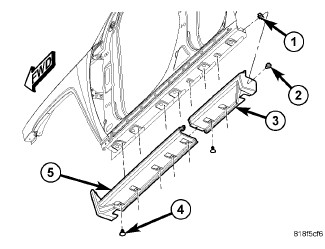

2. Remove the push pin fasteners (4) along the bottom of the cladding (5).
3. Using a trim stick or equivalent, gently pry out on the front of the cladding (5) which is attached with two sided tape.
4. Using a trim stick or equivalent, gently pry out on the cladding to disconnect it from the side rocker panel.
