Liftgate Trim Panel - Removal
>>
Upper
Upper
REMOVAL

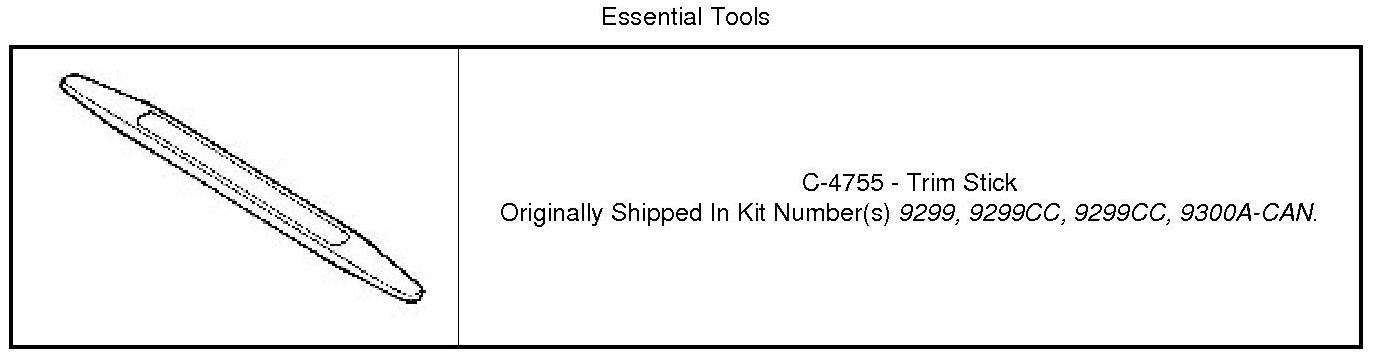

Special Tools:
1.

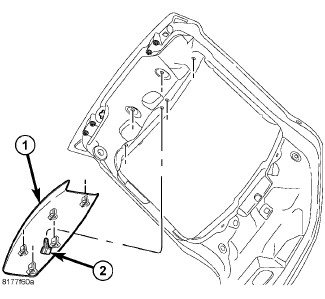

Using trim stick or equivalent, pry up on upper trim(1) ensuring trim tabs disengage.
2.
Remove from vehicle.
