Fuel Fill Door - Removal

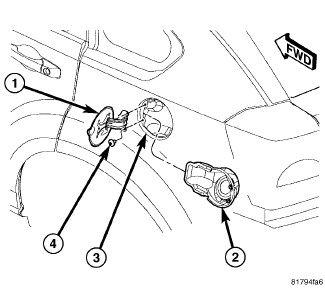

REMOVAL





1. Remove fuel filler door fasteners (4).
2. Remove fuel filler door.
3. Remove fuel filler housing screws.
4. Remove fuel filler housing.
