Satellite Receiver Module - Installation

INSTALLATION

NOTE:
If the owner's satellite service was active before the satellite receiver module was replaced the new satellite receiver module will have to be activated. The existing satellite receiver module will have to be deactivated before the replacement satellite receiver module can be activated.

To activate Sirius satellite radio service, call Sirius at their toll-free number. Please have the following information available when activating a system:

- Electronic Serial Number / Sirius Identification Number (ESN/SID) of the unit to be replaced
- ESN/SID of the replacement receiver
- Vehicle Owner's name and address
- VIN

The ESN/SID number can be obtained through the radio display by following the steps in the satellite radio owners manual.

The vehicle must be outside with the audio system powered on, in the satellite radio mode, to receive the activation signal.

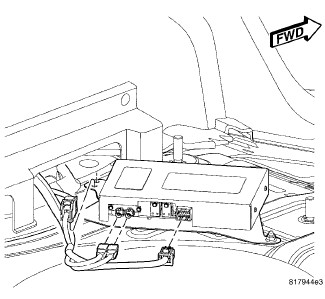

1. Position the module to the mounting bracket.
2. Connect wire harness connectors.
3. Install mounting bracket and fasteners.
4. Position back the carpet on the drivers side to cover the satellite module.
5. Install the cargo floor cover Cargo Floor Cover - Installation.
6. Connect the battery negative cable.
