Satellite Antenna - Installation

INSTALLATION

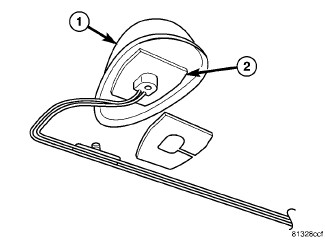

1. If original antenna is being reinstalled, remove backing from patch adhesive (2) and apply to antenna base (1).
2. Remove backing from the adhesive on the antenna.
3. Insert wire harness through hole in roof panel. Press antenna into position until both retainers snap into place.
4. Connect wire harness connectors to antenna.
5. Install headliner Service and Repair
6. Connect battery negative cable.
