U0186

U0186-LOST COMMUNICATION WITH AUDIO AMPLIFIER (AMP)





For a complete wiring diagram, refer to the Wiring Information.

- When Monitored:
With the ignition on.

Battery voltage between 10 and 16 volts.

Ignition Off Draw (IOD) fuse installed.

Totally Integrated Power Module (TIPM) is configured correctly.

- Set Condition:
Bus messages not received from the Amplifier for approximately two to five seconds.





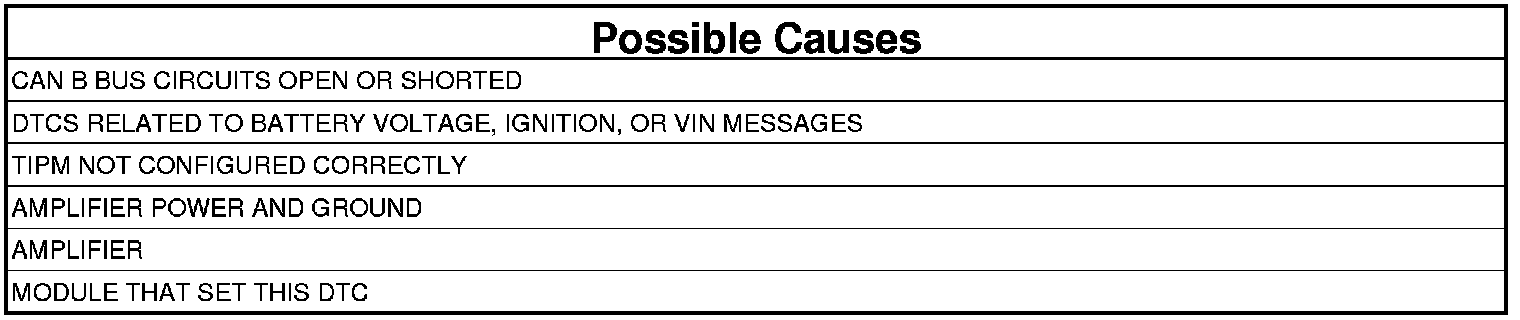

1. VERIFY THE DIAGNOSTIC TROUBLE CODE (DTC) IS ACTIVE

NOTE: Make sure the IOD fuse is installed and battery voltage is between 10 and 16 volts before proceeding.

NOTE: Check for any TSB(s) related to the condition. If a TSB applies, perform the procedure outlined in the TSB before continuing.

1. Using the scan tool, read active DTCs.

Is this DTC active?

Yes

- Go To 2

No

- Perform the Stored Lost Communication DTCs diagnostic procedure Stored Lost Communication DTCs.

2. CHECK FOR ANY OF THE FOLLOWING ACTIVE DTCs
1. Using the scan tool, read active DTCs from all modules.

NOTE: Check for TIPM configuration, CAN B or C hardware electrical, VIN Missing/Mismatch, battery or ignition related DTCs.

Does the scan tool display any active DTCs to the conditions listed above?

Yes

- Perform the appropriate diagnostic procedure.

No

- Go To 3

3. VERIFY THAT THE AMPLIFIER IS ACTIVE ON THE BUS
1. Turn the ignition on.
2. Using the scan tool, select ECU View.
3. Verify that the Amplifier is active on the bus.

Is the Amplifier active on the bus?

Yes

- Go To 4

No

- Perform the No Response from AMP diagnostic procedure No Response From AMP (Amplifier).

4. CHECK FOR ADDITIONAL COMMUNICATION RELATED DTCs
1. Using the scan tool, select Network View and select Advanced.

Is there more than one module with active DTCs "Logged Against" the Amplifier?

Yes

- Replace/update the Amplifier.
- Perform the BODY VERIFICATION TEST. Body Verification Test.

No

- Replace/update the module that set this DTC.
- Perform the appropriate VERIFICATION TEST.
