P0113

P0113-INTAKE AIR TEMPERATURE SENSOR CIRCUIT HIGH





For a complete wiring diagram, refer to the Wiring Information.

Theory of Operation

Intake Air Temperature Sensor performance looks at the outputs of three temperature sensors and compares them under cold start conditions. Following a start to run delay time, the outputs of the ambient, engine coolant and intake air temperature sensors will be compared. If the engine coolant and ambient air temperature sensors agree and the intake air temperature does not agree, the intake air temperature sensor is declared as irrational. If declared irrational a second comparison will be done after a short drive cycle.

- When Monitored:
With the ignition on and the battery voltage greater than 10.4 Volts.

- Set Condition:
The Powertrain Control Module (PCM) detects that the Intake Air Temperature (IAT) Sensor input voltage is above the maximum acceptable value.





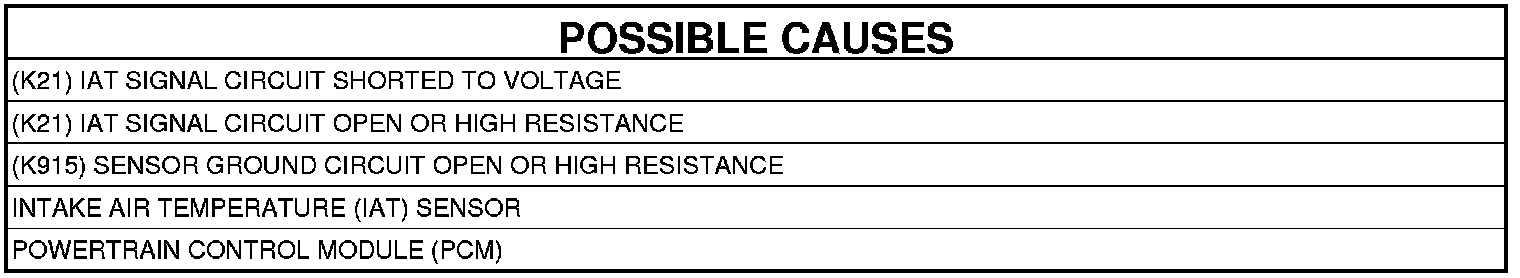

Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. Pre-Diagnostic Troubleshooting Procedure.

1. DIAGNOSTIC TROUBLE CODE (DTC) IS ACTIVE
1. Start the engine and allow it to reach normal operating temperature.

WARNING: When the engine is operating, do not stand in direct line with the fan. Do not put your hands near the pulleys, belts or fan. Do not wear loose clothing. Failure to follow these instructions may result in possible serious or fatal injury.

2. Using the scan tool, select View DTCs.

Is the status Active for this DTC?

Yes

- Go To 2

No

- Perform the INTERMITTENT CONDITION diagnostic procedure. Intermittent Condition Test.

2. (K21) IAT SIGNAL CIRCUIT SHORTED TO VOLTAGE




1. Turn the ignition off.
2. Disconnect the Intake Air Temperature (IAT) Sensor harness connector.
3. Disconnect the Powertrain Control Module (PCM) harness connectors.
4. Turn the ignition on.
5. Measure the voltage of the (K21) IAT Signal circuit in the IAT Sensor harness connector.

Is there any voltage present?

Yes

- Repair the (K21) IAT Signal circuit for a short to voltage.
- Perform the POWERTRAIN VERIFICATION TEST. Powertrain Verification Test.

No

- Go To 3

3. (K21) IAT SIGNAL OPEN OR HIGH RESISTANCE




1. Turn the ignition off.
2. Measure the resistance of the (K21) IAT Signal circuit between the IAT Sensor harness connector and the PCM C2 harness connector.

Is the resistance below 5.0 Ohms?

Yes

- Go To 4

No

- Repair the (K21) IAT Signal circuit for an open circuit or high resistance.
- Perform the POWERTRAIN VERIFICATION TEST. Powertrain Verification Test.

4. (K915) SENSOR GROUND CIRCUIT OPEN OR HIGH RESISTANCE




1. Measure the resistance of the (K915) Sensor Ground circuit between the IAT Sensor harness connector and the PCM C1 harness connector.

Is the resistance below 5.0 Ohms?

Yes

- Go To 5

No

- Repair the (K915) Sensor Ground circuit for an open circuit or high resistance.
- Perform the POWERTRAIN VERIFICATION TEST. Powertrain Verification Test.

5. INTAKE AIR TEMPERATURE SENSOR




1. Turn the ignition off.
2. Connect the Powertrain Control Module (PCM) harness connectors.
3. Connect a jumper wire between the (K21) IAT Signal circuit and the (K915) Sensor Ground in the IAT Sensor harness connector.
4. Turn the ignition on.
5. Using the scan tool, read the IAT Sensor signal voltage.

Is the voltage below 1.0 Volt with the jumper wire in place?

Yes

- Replace the Intake Air Temperature Sensor. Removal.
- Perform the POWERTRAIN VERIFICATION TEST. Powertrain Verification Test.

No

- Go To 6

6. POWERTRAIN CONTROL MODULE (PCM)
1. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the Intake Air Temperature Sensor and the Powertrain Control Module (PCM).
2. Look for any chafed, pierced, pinched, or partially broken wires.
3. Look for broken, bent, pushed out or corroded terminals.
4. Monitor the scan tool data relative to this circuit and wiggle test the wiring and connectors.
5. Look for the data to change or for the DTC to reset during the wiggle test.
6. Perform any Technical Service Bulletins that may apply.

Were any problems found?

Yes

- Repair as necessary.
- Perform the POWERTRAIN VERIFICATION TEST. Powertrain Verification Test.

No

- Replace and program the Powertrain Control Module (PCM). Powertrain Control Module - Programming.
- Perform the POWERTRAIN VERIFICATION TEST. Powertrain Verification Test.
