No Response From TCM (Transmission Control Module) (CVT)

NO RESPONSE FROM TCM (TRANSMISSION CONTROL MODULE) (CVT)

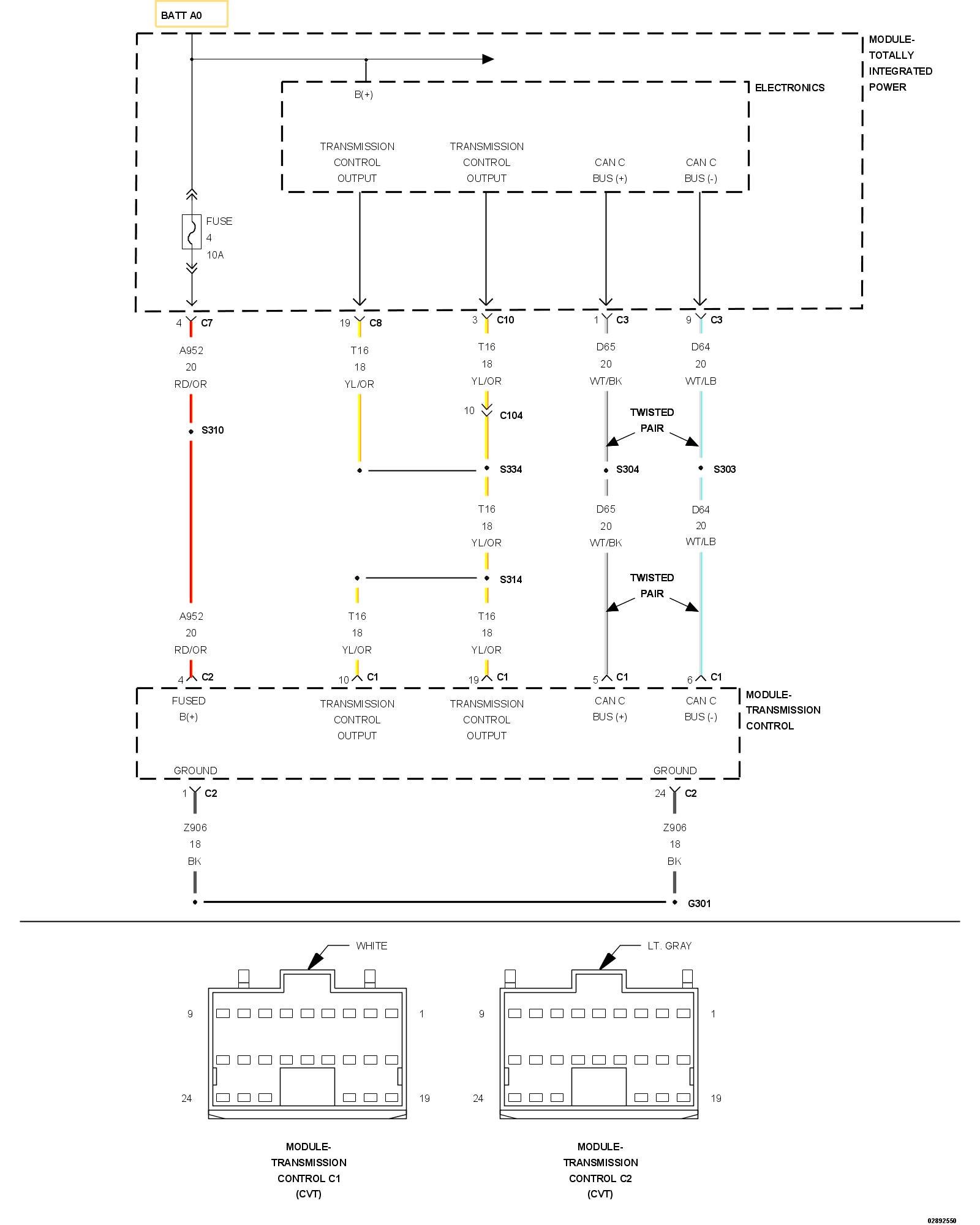

For a complete wiring diagram, refer to the Wiring Information.






1. TEST FOR INTERMITTENT CONDITION

NOTE: Check for any TSB(s) related to the condition. If a TSB applies, perform the procedure outlined in the TSB before continuing.

1. Turn the ignition on.

NOTE: Make sure the IOD fuse is installed and battery voltage is between 10.0 and 16.0 volts.

2. With the scan tool, select ECU View.

NOTE: A red "X" will be next to the module that is not communicating, indicating that the module is not active on the Bus network. A green check indicates that the module is active on the Bus network.

NOTE: Check the TIPM for any active CAN C hardware DTCs, perform DTC before proceeding.

Does the scan tool display a red "X" next to the module?

Yes

- Go To 2

No

- The no response condition is not present at this time. Using the wiring diagram/schematic as a guide, inspect the wiring for chafed, pierced, pinched, and partially broken wires and the wiring harness connectors for broken, bent, pushed out, and corroded terminals.

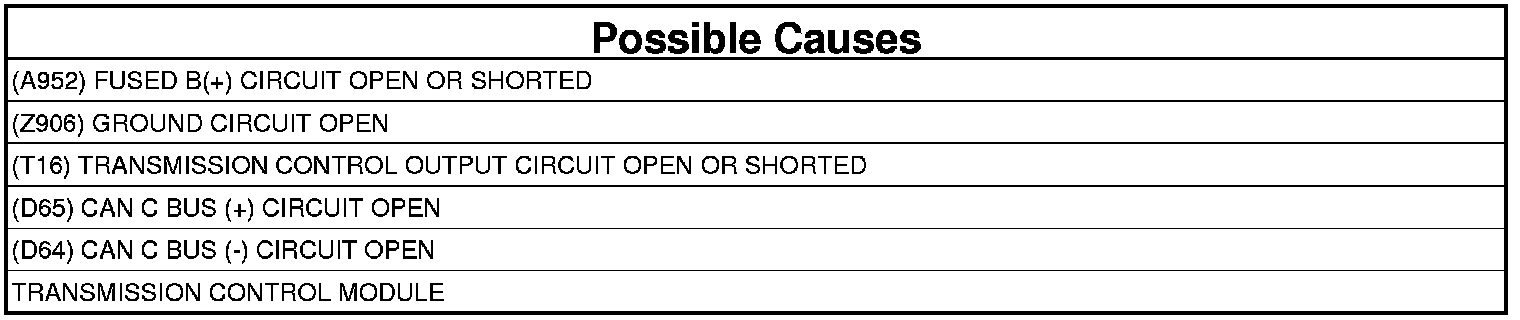

2. (A952) FUSED B(+) CIRCUIT OPEN OR SHORTED




1. Turn the ignition off.
2. Disconnect the TCM C2 harness connector.

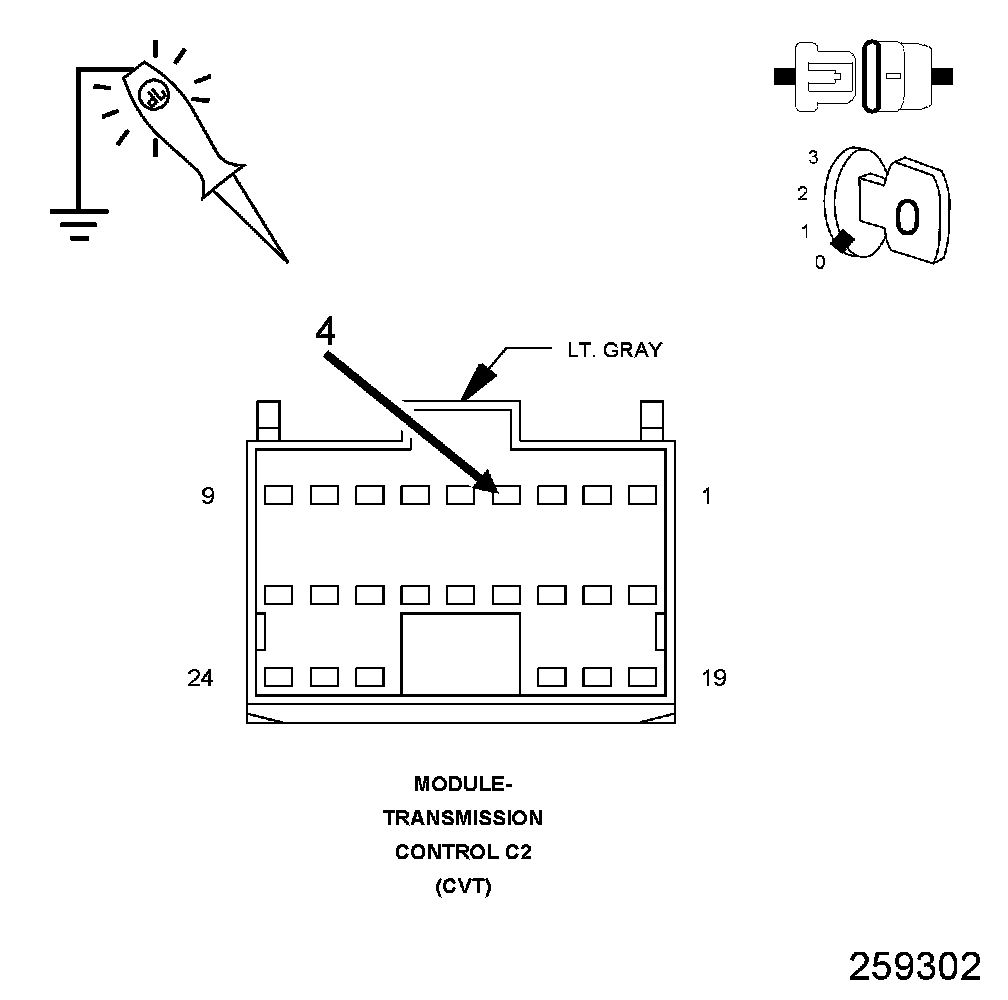

3. Using a 12-volt test light connected to ground, check the (A952) Fused B(+) circuit.

Does the test light illuminate brightly?

Yes

- Go To 3

No

- Repair the (A952) Fused B(+) circuit for an open or short.
- Perform the CVT TRANSMISSION VERIFICATION TEST. CVT Transmission Verification Test.

3. (Z906) GROUND CIRCUIT OPEN

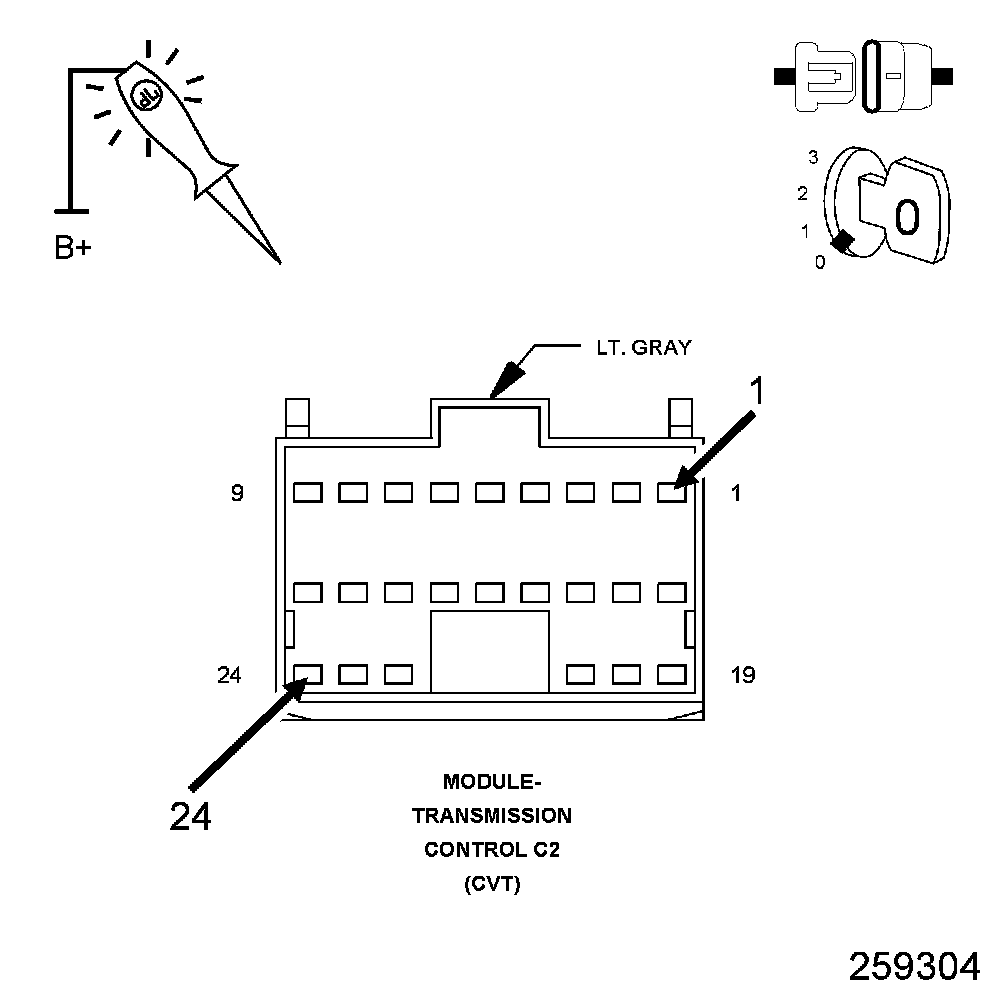

1. Using a 12-volt test light connected to 12-volts, check each (Z906) ground circuit.

Does the test light illuminate brightly?

Yes

- Go To 4

No

- Repair the (Z906) ground circuit for an open.
- Perform the CVT TRANSMISSION VERIFICATION TEST. CVT Transmission Verification Test.

4. (T16) TRANSMISSION CONTROL OUTPUT CIRCUITS OPEN OR SHORTED




1. Disconnect the TCM C1 harness connector.
2. Turn the ignition on.

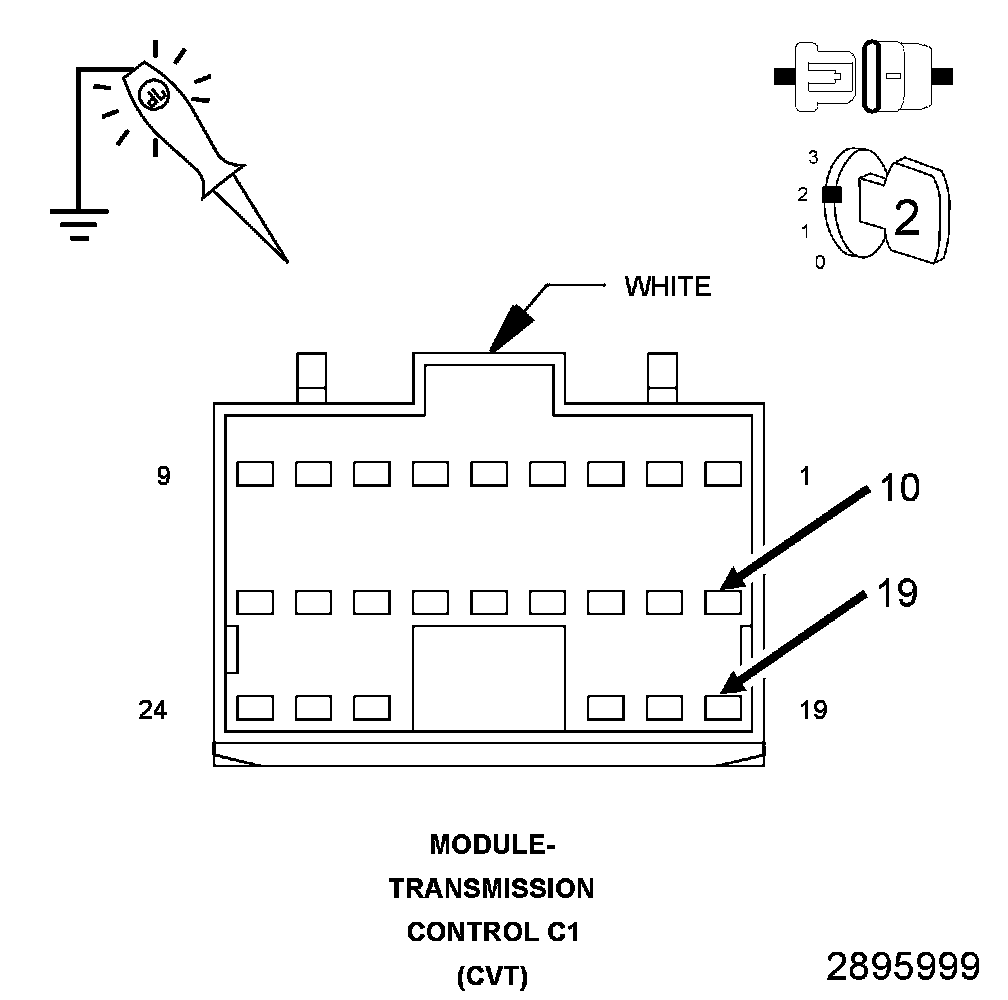

3. Using a 12-volt test light connected to ground, check the (T16) Transmission Control Output circuits.

Does the test light illuminate brightly for each circuit?

Yes

- Go To 5

No

- Repair the (T16) Transmission Control Output circuit for an open or short.
- Perform the CVT TRANSMISSION VERIFICATION TEST. CVT Transmission Verification Test.

5. (D65) CAN C BUS (+) CIRCUIT OPEN




1. Turn the ignition off.
2. Disconnect the TIPM C3 harness connector.
3. Disconnect the TCM C1 harness connector.

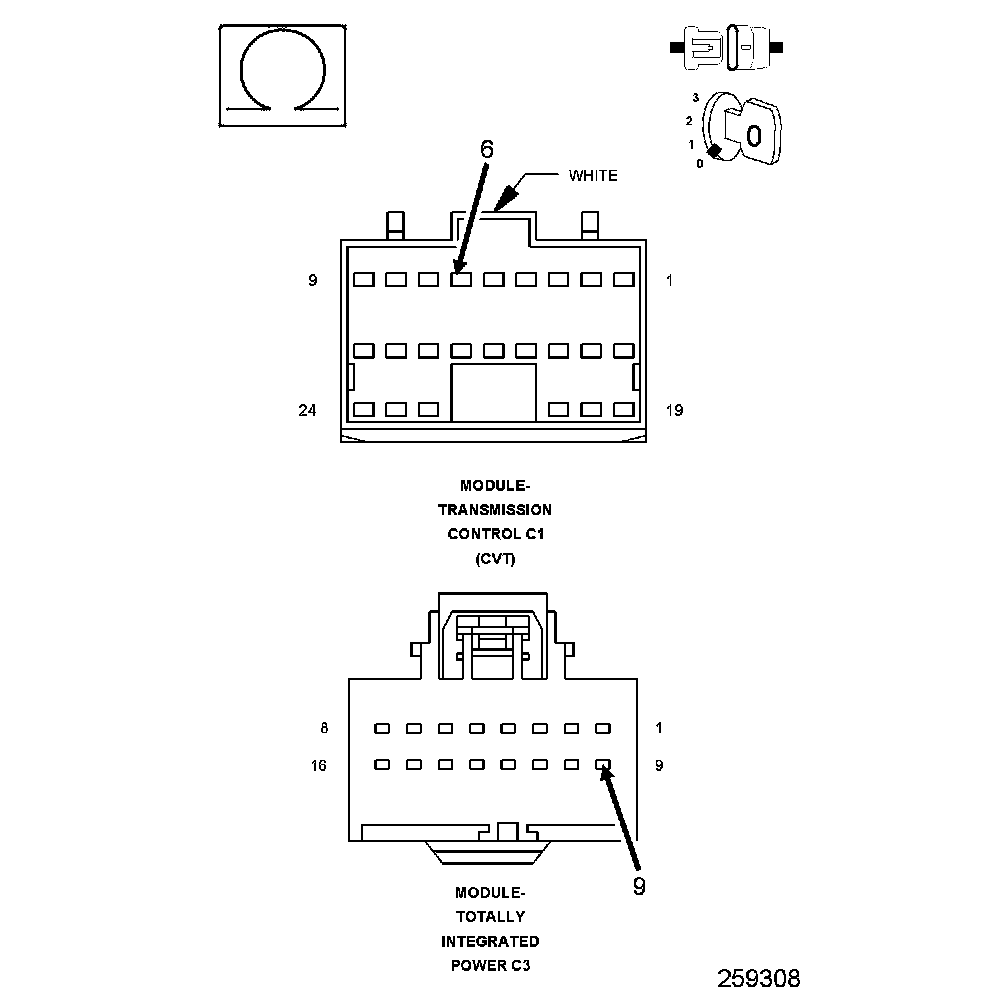

4. Measure the resistance of the (D65) CAN C Bus (+) circuit between the TIPM C3 harness connector and the TCM C1 harness connector.

Is the resistance below 5.0 Ohms?

Yes

- Go To 6

No

- Repair the (D65) CAN C Bus (+) circuit for an open.
- Perform the CVT TRANSMISSION VERIFICATION TEST. CVT Transmission Verification Test.

6. (D64) CAN C BUS (-) CIRCUIT OPEN

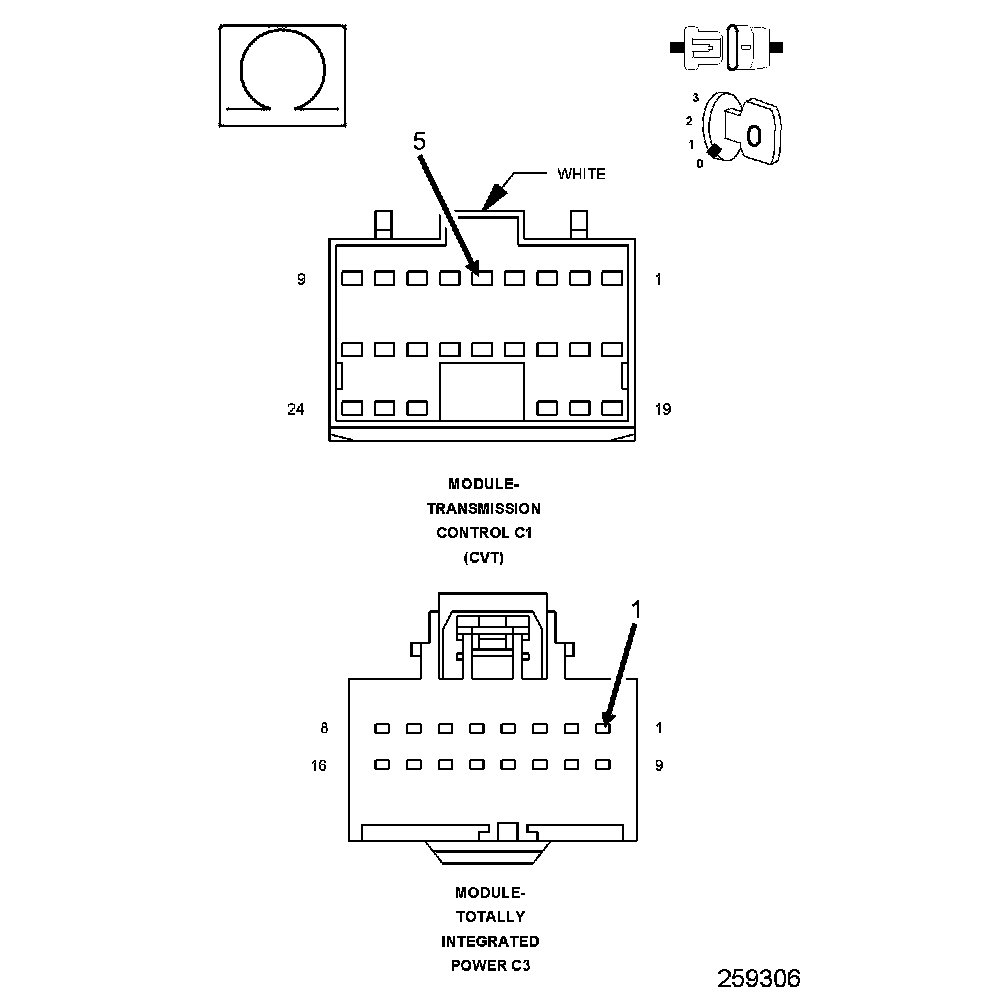

1. Measure the resistance of the (D64) CAN C Bus (-) circuit between the TIPM C3 harness connector and the TCM C1 harness connector.

Is the resistance below 5.0 Ohms?

Yes

- Replace and program the Transmission Control Module.
- Perform the CVT TRANSMISSION VERIFICATION TEST. CVT Transmission Verification Test.

No

- Repair the (D64) CAN C Bus (-) circuit for an open.
- Perform the CVT TRANSMISSION VERIFICATION TEST. CVT Transmission Verification Test.
