C2206

C2206-VEHICLE CONFIGURATION MISMATCH

For a complete wiring diagram, refer to the Wiring Information.

- When Monitored:
With the ignition on.

- Set Condition:
When the Anti-lock Brake (ABS) Module detects the signal from the gateway module relevant for vehicle characteristic is missing for a period greater than the specified fault duration.





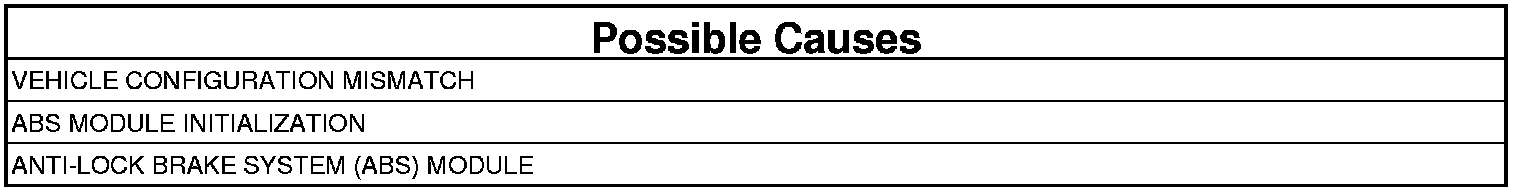

1. VERIFY THE DTC IS ACTIVE
1. Turn the ignition on.
2. With the scan tool, select "Miscellaneous Functions" and Restore Vehicle Configuration.
3. With the scan tool, record and erase the DTCs.
4. Cycle the ignition switch off then on.
5. With the scan tool, read the DTCs.

Is the DTC active at this time?

Yes

- Go To 2

No

- Perform the ABS VERIFICATION TEST. ABS Verification Test.

2. INITIALIZE THE ABS MODULE
1. Cycle the ignition switch off then on.
2. With the scan tool, under "Miscellaneous Functions" run the ABS Initialization routine.
3. With the scan tool, erase the DTCs.
4. With the scan tool, read the DTCs.

Does the DTC remain active?

Yes

- Replace the Anti-lock Brake System (ABS) Module.
- Perform the ABS VERIFICATION TEST. ABS Verification Test.

No

- Test complete, the condition or conditions that originally set this DTC are not present at this time.
