B2367

B2367-WINDOW WASHER MOTOR 1 CONTROL CIRCUIT

For a complete wiring diagram, refer to the Wiring Information.

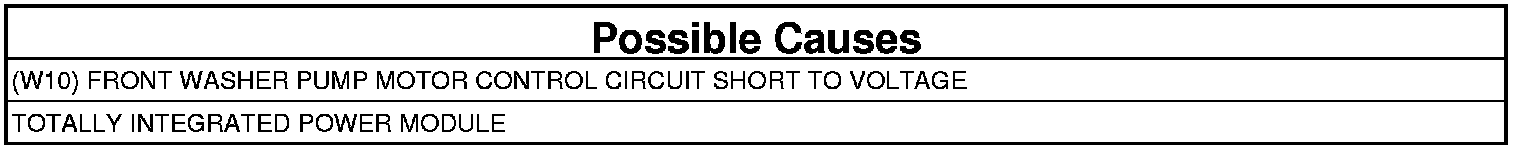

- When Monitored:
With the ignition on.

- Set Condition:
The TIPM detects an open condition.





1. INTERMITTENT CONDITION
1. Turn the ignition on.
2. With the scan tool, clear all TIPM DTCs.
3. Turn the Front Wipers on.
4. With the scan tool, read the active Front Wiper DTCs.

Does the scan tool read: B2367-WINDOW WASHER MOTOR 1 CONTROL CIRCUIT?

Yes

- Go To 2

No

- Test complete, the condition or conditions that originally set this DTC are not present at this time. Using the wiring diagrams as a guide, check all related splices and connectors for signs of water intrusion, corrosion, pushed out or bent terminals and correct pin tension.
- Perform the BODY VERIFICATION TEST. Body Verification Test.

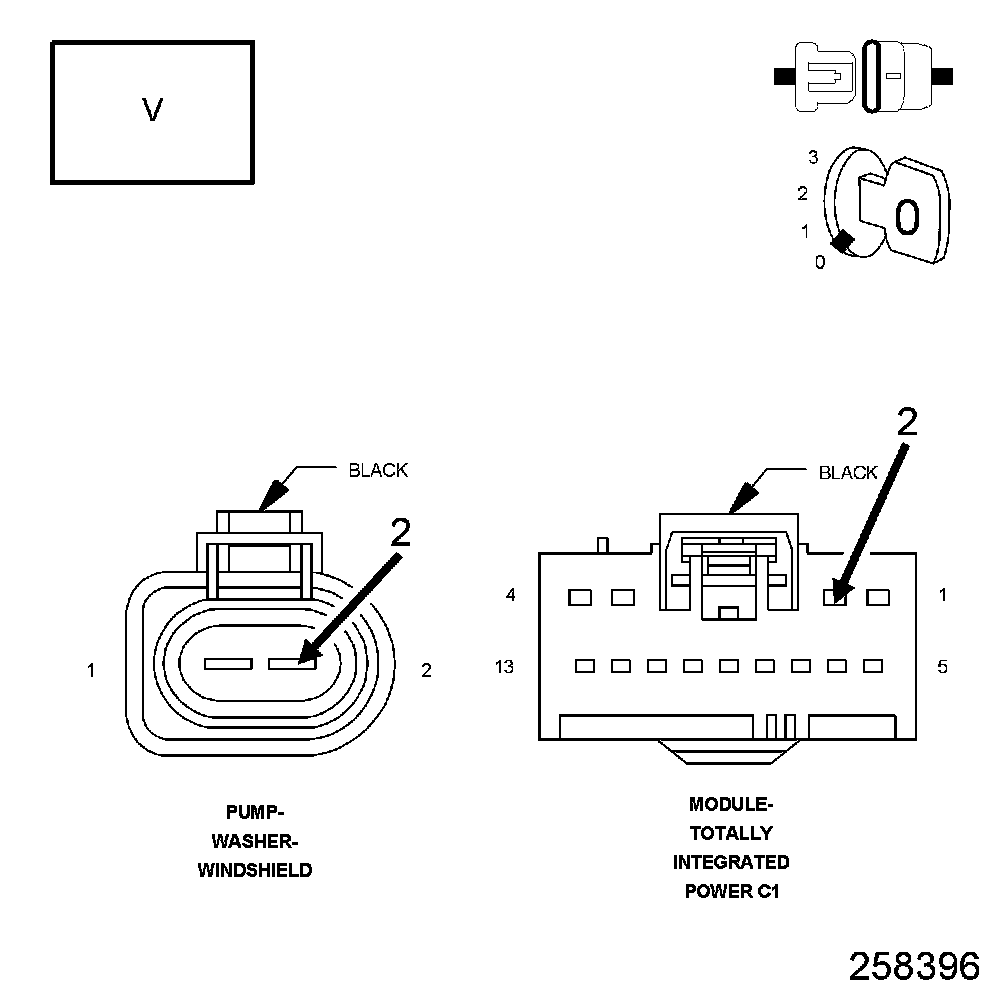

2. (W10) FRONT WASHER PUMP MOTOR CONTROL CIRCUIT SHORT TO VOLTAGE




1. Turn the ignition off.
2. Disconnect the Front Washer Pump Motor harness connector.
3. Disconnect the TIPM C1 harness connector.
4. Measure the voltage on the (W10) Front Washer Pump Motor Control circuit.

Is the voltage above 5.0 volts?

Yes

- Repair the (W10) Front Washer Pump Motor Control circuit for a short to voltage.
- Perform the BODY VERIFICATION TEST. Body Verification Test.

No

- Replace the Totally Integrated Power Module.
- Perform the BODY VERIFICATION TEST. Body Verification Test.
