B2182

B2182-HEATED SEAT MODULE POWER SUPPLY HIGH

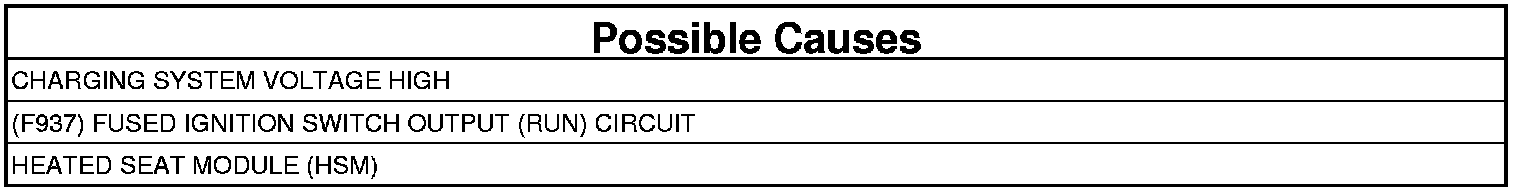

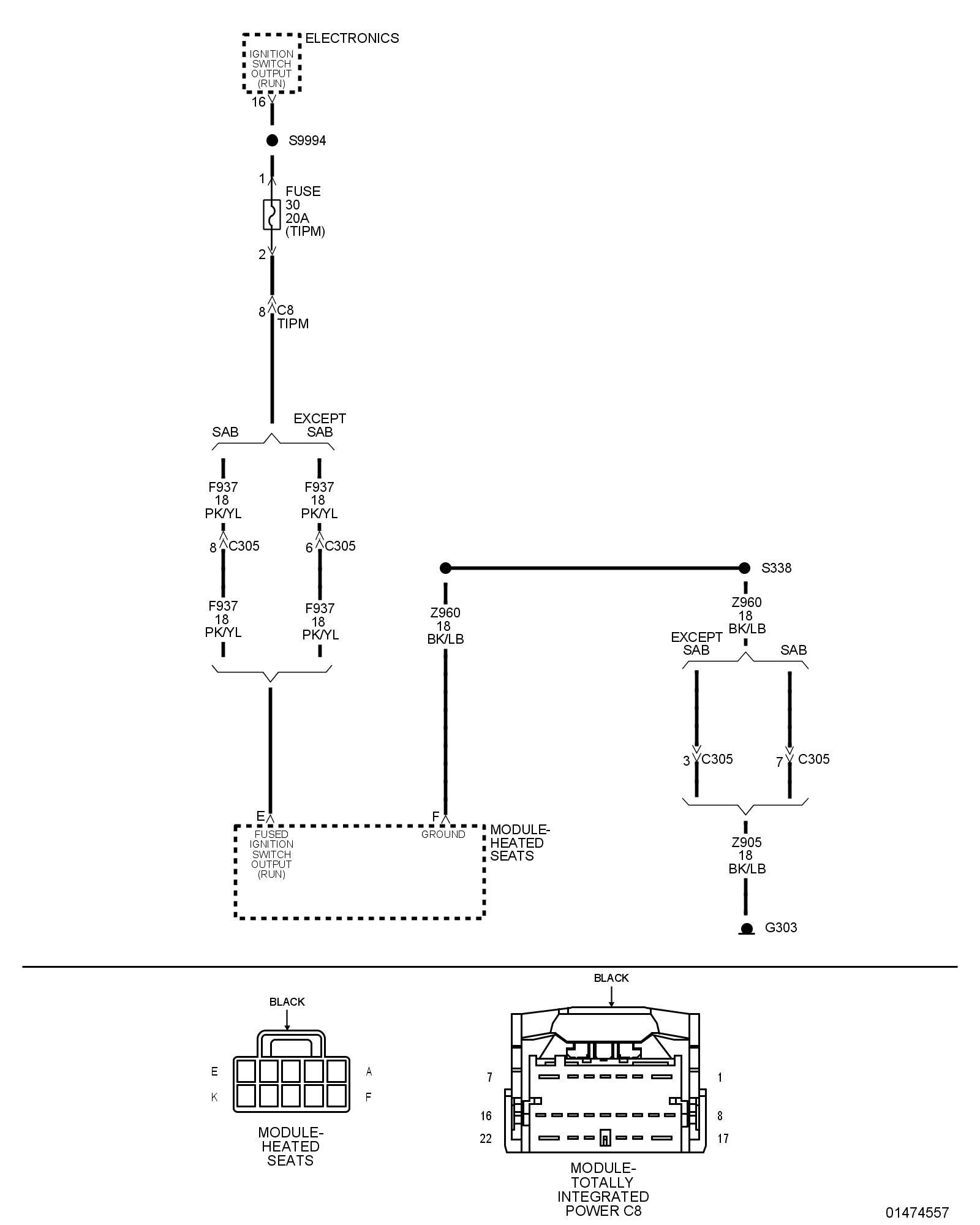

For a complete wiring diagram, refer to the Wiring Information.

- When Monitored:
With ignition on.

- Set Condition:
If the Heated Seat Module detects voltage over 16.0 volts on the on the (F937) Fused Ignition Switch Output (Run) circuit.





1. CHECK FOR CHARGING SYSTEM DIAGNOSTIC TROUBLE CODES (DTCs)
1. Turn the ignition on.
2. With the scan tool, read Powertrain Control Module (PCM) DTCs.

Are there any Charging System DTCs set in the PCM?

Yes

- Charging System and Testing and Inspection for Charging System diagnostic procedures.

No

- Go To 2

2. VERIFY DTC B2182-HEATED SEAT MODULE POWER SUPPLY HIGH IS ACTIVE
1. With the scan tool, record and erase DTCs.
2. Turn the ignition off.
3. Start the engine and let it run for one minute.
4. With the scan tool, read DTCs.

Does the scan tool display this DTC as active?

Yes

- Go To 3

No

- Test complete, the condition or conditions that originally set this DTC are not present at this time. Using the wiring diagrams as a guide, check all related splices and connectors for signs of water intrusion, corrosion, pushed out or bent terminals, and correct pin tension.
- Perform the BODY VERIFICATION TEST. Body Verification Test.

3. CHECK (F937) FUSED IGNITION SWITCH OUTPUT (RUN) CIRCUIT VOLTAGE




1. Turn the ignition off.
2. Disconnect the HSM harness connector.

NOTE: Check connectors. Clean and repair as necessary.

3. Start the engine and let idle.

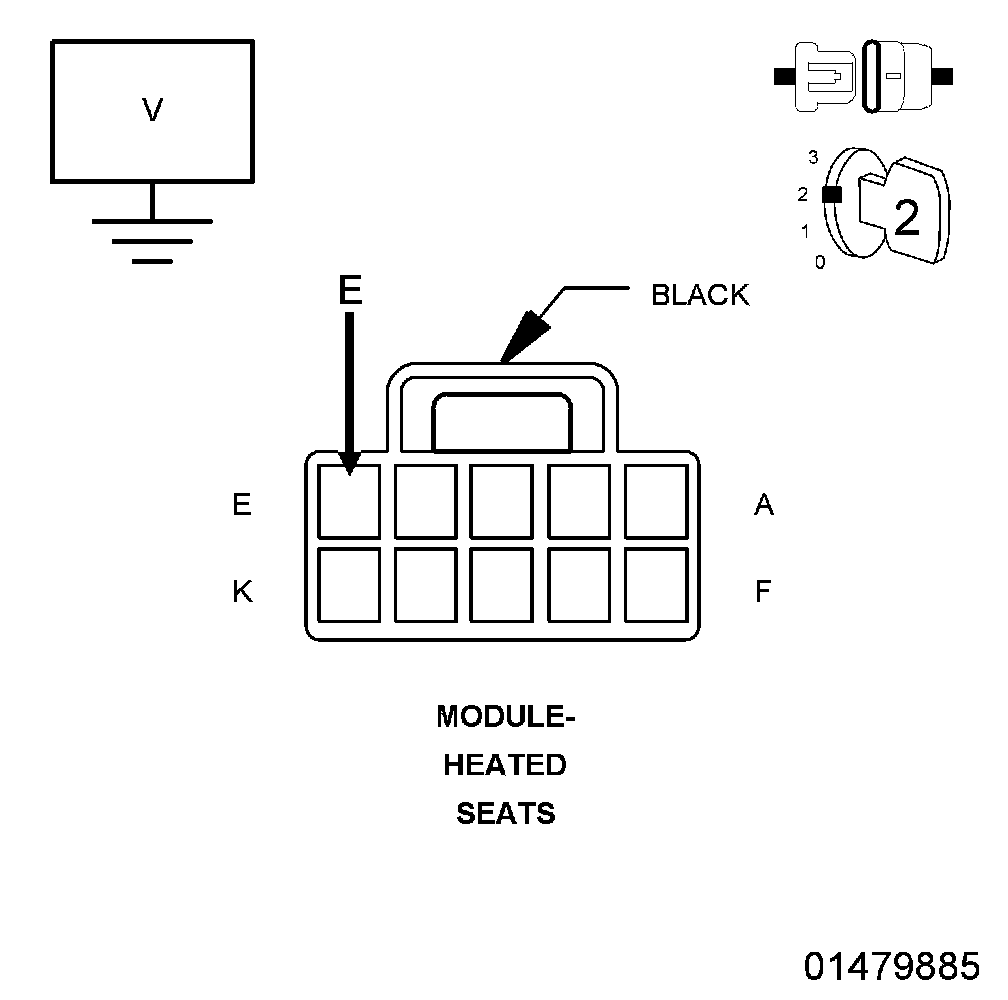

4. Measure the voltage of the (F937) Fused Ignition Switch Output (Run) circuit between the HSM connector and ground and compare it to the voltage at the vehicle battery.

Is the voltage measured at the HSM connector the same as the voltage measured at the battery?

Yes

- Replace the Heated Seat Module (HSM).
- Perform the BODY VERIFICATION TEST. Body Verification Test.

No

- Repair the (F937) Fused Ignition Switch Output (Run) circuit for the cause of the high voltage condition at the HSM.
- Perform the BODY VERIFICATION TEST. Body Verification Test.
