B2113

B2113-5-VOLT SUPPLY CIRCUIT HIGH





For a complete wiring diagram, refer to the Wiring Information.

- When Monitored:
With the ignition on.

- Set Condition:
The Totally Integrated Power Module detects a short to battery voltage on the A/C Pressure Sensor Supply circuit.





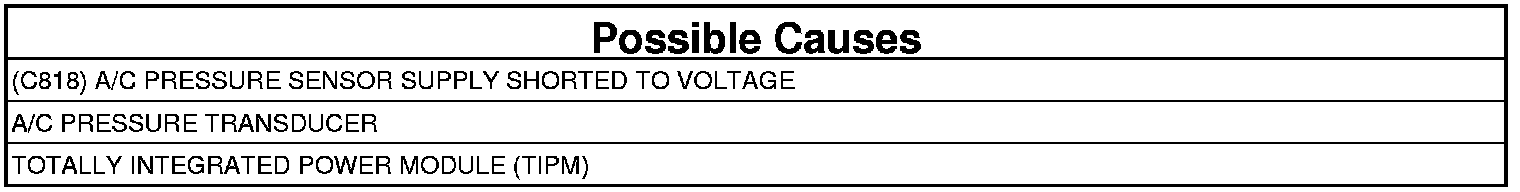

1. CHECK FOR ACTIVE DIAGNOSTIC TROUBLE CODE (DTC)
1. Turn the ignition on.
2. Using the scan tool, read the DTCs.

Does the scan tool display this DTC as active?

Yes

- Go To 2

No

- If the DTC is stored, check for an intermittent condition. Using the wiring diagram/schematic as a guide, visually inspect the related wiring harness connectors. Look for broken, bent, pushed out or corroded terminals.
- Perform the BODY VERIFICATION TEST Body Verification Test.

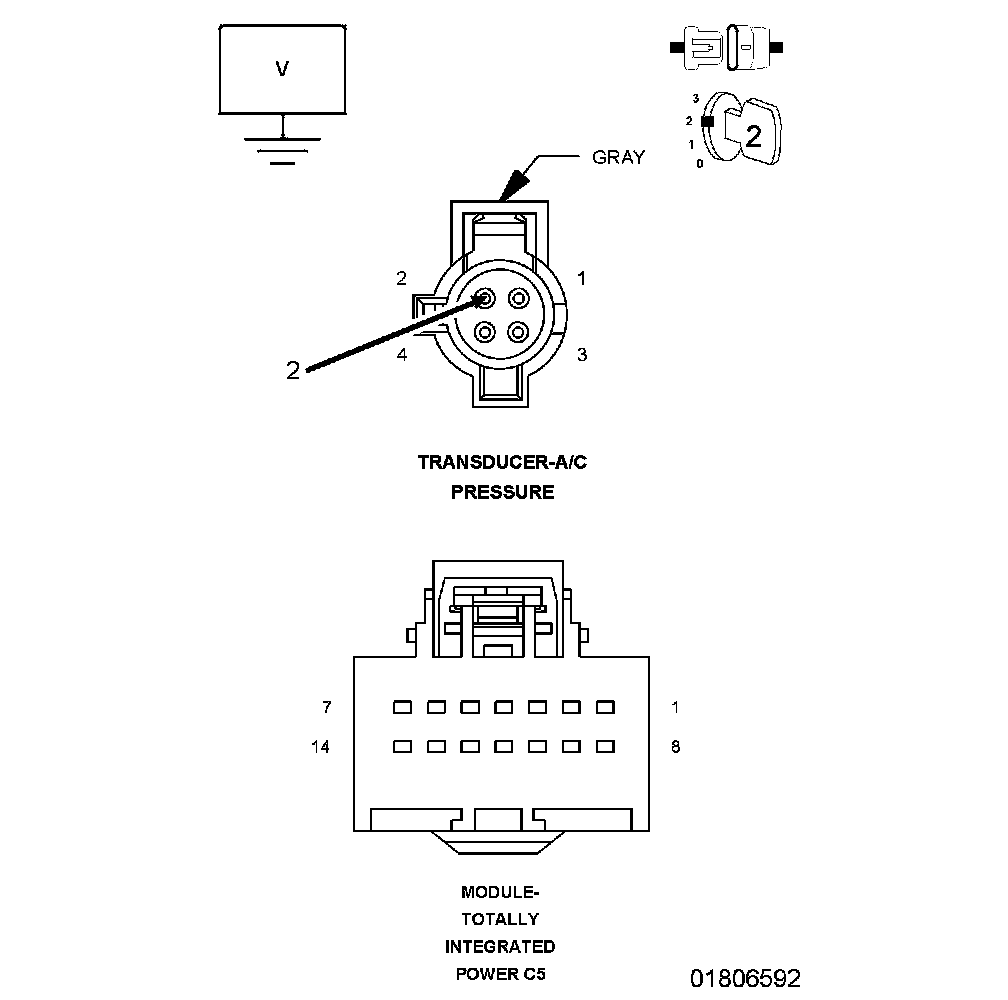

2. (C818) A/C PRESSURE SENSOR SUPPLY SHORTED TO VOLTAGE




1. Turn the ignition off.
2. Disconnect the A/C Pressure Transducer harness connector.
3. Disconnect the TIPM C5 harness connector.
4. Turn the ignition on.
5. Measure the voltage of the (C818) A/C Pressure Sensor Supply circuit.

Is the voltage above 10.0 Volts?

Yes

- Repair the (C818) A/C Pressure Sensor Supply circuit for a short to voltage.
- Perform the BODY VERIFICATION TEST Body Verification Test.

No

- Replace the TIPM.
- Perform the BODY VERIFICATION TEST Body Verification Test.
