B2102

B2102-IGNITION RUN/START INPUT HIGH





For a complete wiring diagram, refer to the Wiring Information.

- When Monitored:
With the ignition switch on.

- Set Condition:
The Sentry Key remote Entry Module (SKREEM) also known as the Wireless Control Module (WCM) has detected the ignition switch input voltage above a calibrated value.





1. DETERMINING IF DIAGNOSTIC TROUBLE CODE (DTC) IS CURRENT

NOTE: Diagnose any related Powertrain DTCs before continuing.

1. With a scan tool, read and record DTCs.
2. With the scan tool, clear DTCs.
3. Perform 5 ignition cycles, leaving the ignition switch on for a minimum of 90 seconds per cycle.
4. Using the scan tool, read DTCs.

Does the DTC reset?

Yes

- Go To 3

No

- Go To 2

2. INTERMITTENT CONDITION

NOTE: Check for any of the follow conditions:
- Poor wire to terminal connection
- Corroded terminals
- Backed out or loose terminals
- Broken wire internal to the insulation
- Dirty (partial) module ground

1. With the ignition on, wiggle the related wires.
2. Using a scan tool, read DTCs.

Does the DTC reset?

Yes

- Repair the wiring as necessary.
- Perform the WCM VERIFICATION TEST. Wireless Control Module (WCM) Verification

No

- DTC is not active at this time. Test complete.

3. FUSED IGNITION SWITCH OUTPUT (RUN-START) CIRCUIT SHORTED TO BATTERY VOLTAGE





NOTE: A dirty (partial) ground can cause abnormal conditions within a system. Ensure the module has a good ground before continuing.

1. Turn the ignition off.
2. Disconnect the WCM harness connector.

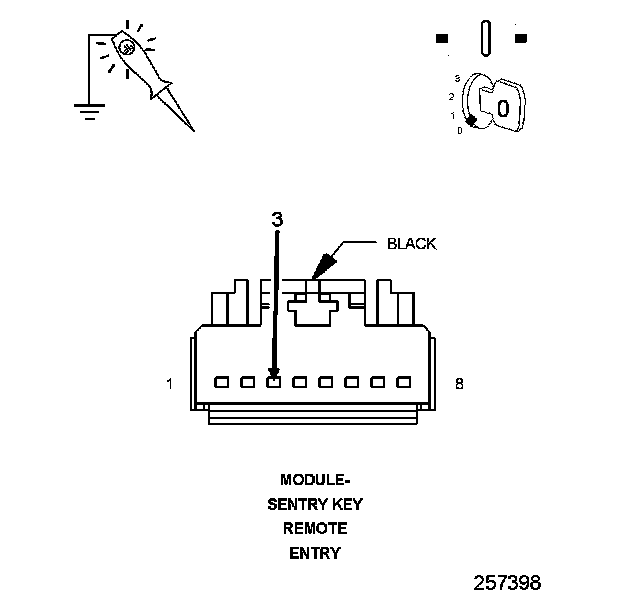

3. Using a 12 volt test light connected to ground, probe the Fused Ignition Switch Output (Run-Start) circuit in the WCM harness connector.

Does the test light illuminate brightly?

Yes

- Repair the Fused Ignition Switch Output (Run-Start) circuit for a short to voltage.
- Perform the WCM VERIFICATION TEST. Wireless Control Module (WCM) Verification

No

- Replace and program the SKREEM.
- Perform the WCM VERIFICATION TEST. Wireless Control Module (WCM) Verification
