B1CDB
B1CDB-PASSENGER OCCUPANT DETECTOR CIRCUIT LOW

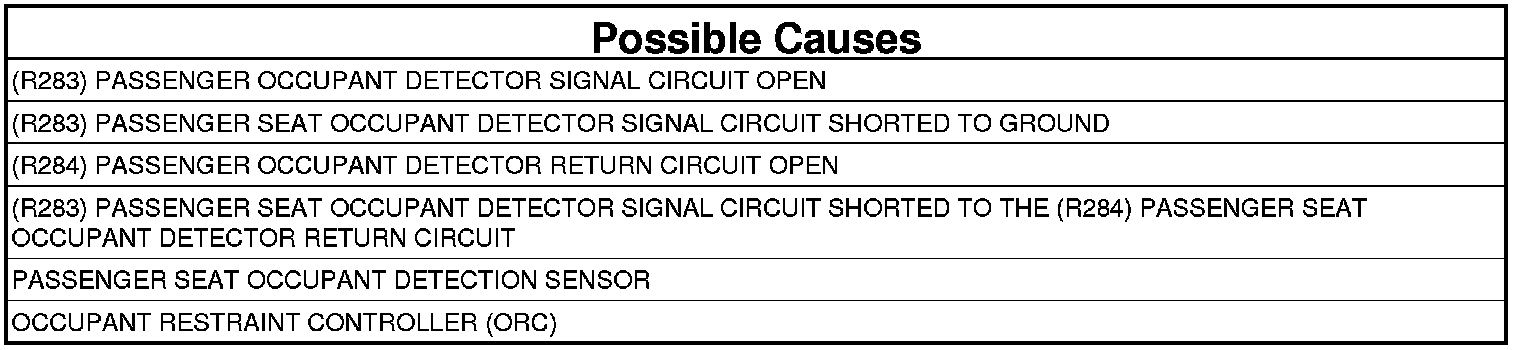

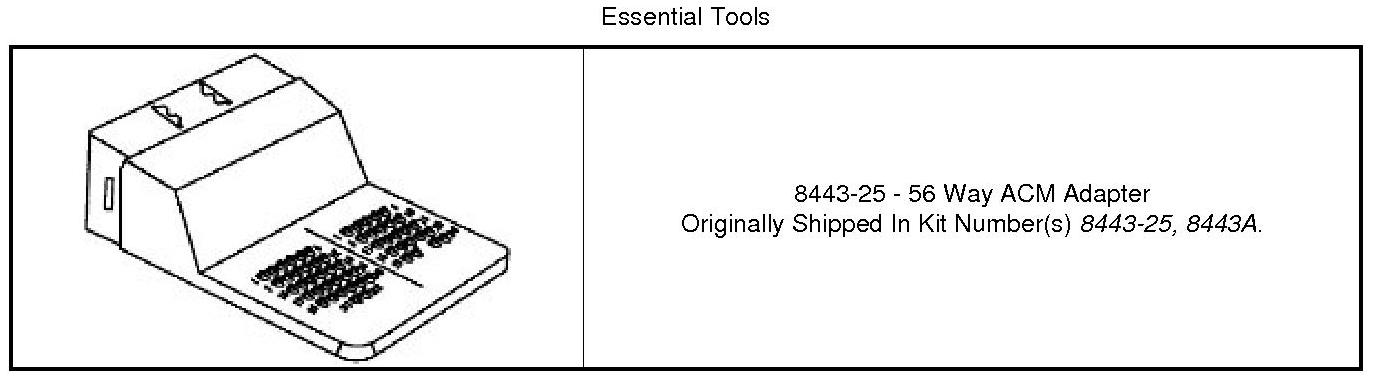

Special Tools:
For a complete wiring diagram, refer to the Wiring Information.
Theory of Operation
The Occupant Detection Sensor (ODS) is a resistive sensor that is located in the front passenger seat. This sensor is only used for passenger seat belt reminder. The seat sensor assumes a passenger is present when a minimum of 53.5 pounds (20kg) of weight is placed in the seat. The resistance of the sensor decreases, signaling to the ORC module that a passenger is present. The ORC then transmits this information to the Instrument cluster over the CAN bus. The passenger is only reminded to buckle up if the vehicle speed is over 5mph (8kph) for 45 seconds. The ODS receives battery voltage and clean ground through dedicated sensor plus and minus circuits from the ORC. The ORC receives, processes, and continuously monitors (monitor rate of 500 ms) the analog signal from the ODS. The ODS component is not repairable, if determined inoperable, and would require to be replaced with a new component.
- When Monitored:
The ORC receives, processes, and continuously monitors (monitor rate of 500 ms) the analog signal from the ODS.
- Set Condition:
This code will set, if the ORC detects short to ground on the (R283) Passenger Occupant Detector Sensor Signal circuit for 2.5 - 5 seconds. The DTC will not latch for the entire ignition cycle. The code goes from Active to Stored 2.5 - 5 seconds after the code setting criteria is gone
Always Perform the Pre-Diagnostic Troubleshooting procedure before proceeding. Testing and Inspection
1.
NOTE: The seat belt warning lamp in the instrument cluster does not set to indicate a passenger seat belt reminder feature.
VERIFY ACTIVE DTC
NOTE: Make sure the battery is fully charged.
1. Turn the ignition on.
2. With the scan tool, read the ORC DTCs
Does the scan tool display active B1CDB-PASSENGER OCCUPANT DETECTOR CIRCUIT LOW DTC?
Yes
- Go To 2
No
- Perform the AIRBAG SYSTEM INTERMITTENT TEST. Initial Inspection and Diagnostic Overview.
2. CHECK THE (R283) PASSENGER OCCUPANT DETECTOR SIGNAL CIRCUIT FOR A SHORT TO VOLTAGE
WARNING: Turn the ignition off, disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.
1. Disconnect the Passenger Occupant Detector Sensor harness connector.
2. Disconnect the ORC harness connectors.
3. Connect the SRS Load Tool Adapter to the ORC harness connectors.
WARNING: Turn the ignition on, then reconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.
4. Measure the (R283) Passenger Occupant Detector Signal circuit voltage between the appropriate terminal of the SRS Load Tool Adapter and ground.
Is there any voltage present?
Yes
- Repair the (R283) Passenger Occupant Detector Signal circuit for a short to voltage.
- Perform the AIRBAG SYSTEM VERIFICATION TEST. Airbag System Verification Test.
No
- Go To 3
3. CHECK THE (R283) PASSENGER OCCUPANT DETECTOR SIGNAL CIRCUIT FOR A SHORT TO GROUND
WARNING: Turn the ignition off, disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.

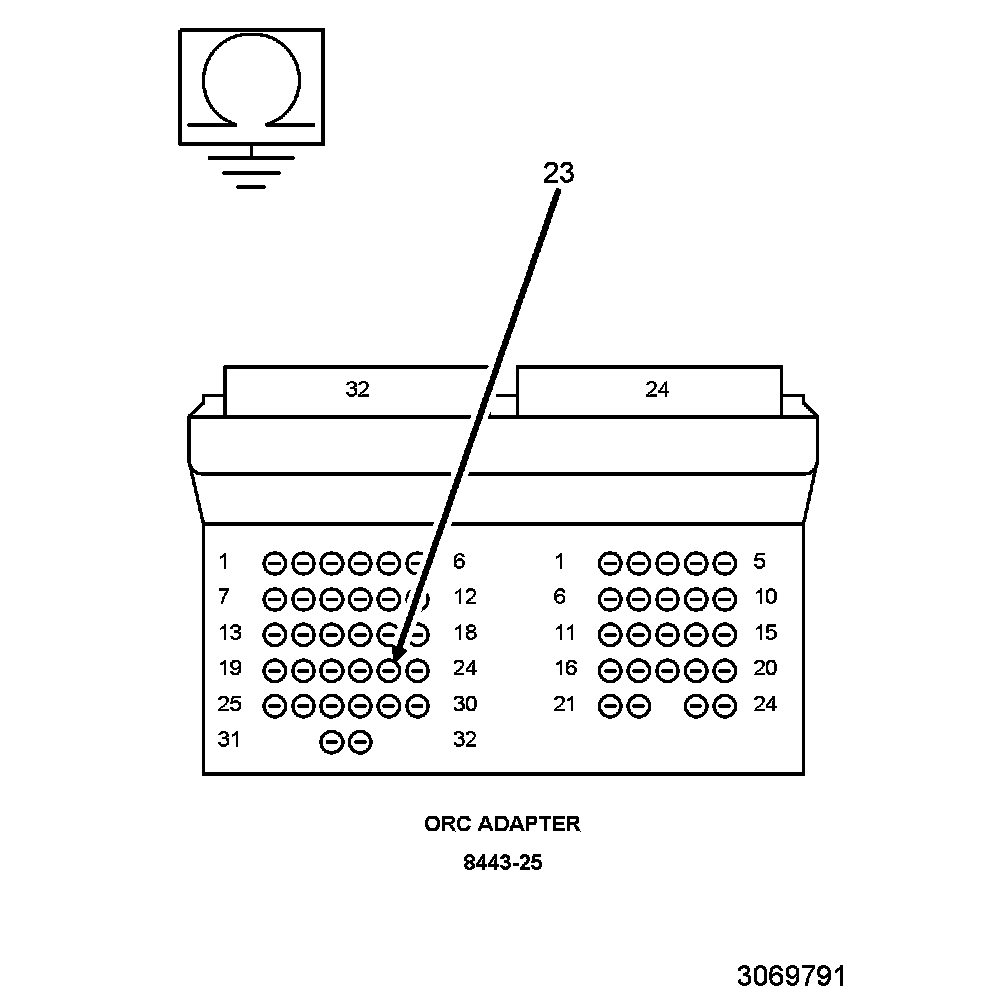

1. Measure the resistance of the (R283) Passenger Occupant Detector Signal circuit between the appropriate terminal of the SRS Load Tool Adapter and ground.
Is the resistance below 2.5 - 5.0 Ohms?
Yes
- Repair the (R283) Passenger Seat Occupant Detector circuit for a short to ground.
- Perform the AIRBAG SYSTEM VERIFICATION TEST. Airbag System Verification Test.
No
- Go To 4
4. CHECK THE (R284) PASSENGER OCCUPANT DETECTOR SENSOR RETURN CIRCUIT FOR A SHORT TO GROUND
1. Measure the resistance of the (R284) Passenger Occupant Sensor Return circuit between the appropriate terminal of the SRS Load Tool Adapter and ground.
Is the resistance below 2.5 - 5.0 Ohms?
Yes
- Go To 5
No
- Repair the (R284) Passenger Occupant Sensor Return circuit for a short to ground.
- Perform the AIRBAG SYSTEM VERIFICATION TEST. Airbag System Verification Test.
5. CHECK THE (R283) PASSENGER OCCUPANT DETECTOR SENSOR SIGNAL CIRCUIT FOR AN OPEN OR HIGH RESISTANCE

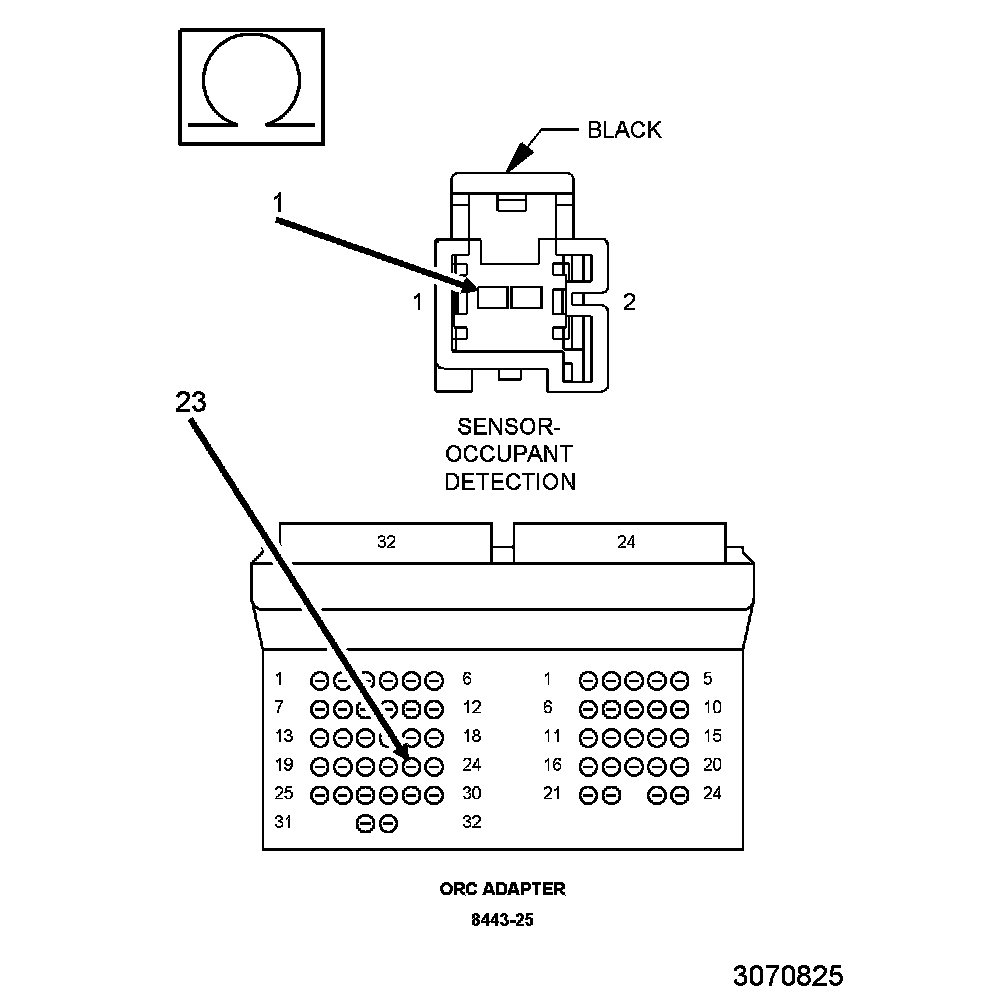

1. Measure the resistance of the (R283) Passenger Occupant Detector Signal circuit between the Passenger Occupant Detector Sensor underseat harness connector and the appropriate terminal of the SRS Load Tool Adapter.
Is the resistance below 2.5 - 5.0 Ohms?
Yes
- Go To 6
No
- Repair the (R283) Passenger Occupant Detector Signal circuit for an open or high resistance.
- Perform the AIRBAG SYSTEM VERIFICATION TEST. Airbag System Verification Test.
6. CHECK OPERATION OF THE PASSENGER OCCUPANT DETECTOR SENSOR
1. Replace the Passenger Occupant Detector Sensor. Occupant Detection Sensor - Removal.
2. Reconnect the vehicle body harness to the Passenger Occupant Detector Sensor.
3. Remove any special tools or jumper wires and reconnect all previously disconnected components - except the Battery.
WARNING: Turn the ignition on, then reconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.
4. Connect the scan tool to the Data Link Connector - use the most current software available.
5. Use the scan tool and erase the ORC stored codes.
6. Turn the Ignition Off and wait 15 seconds before turning the Ignition On.
7. Wait one minute and read active codes and if there are none present read the stored codes.
Does the scan tool display active B1CDB-PASSENGER SEAT OCCUPANT DETECTOR CIRCUIT LOW DTC?
Yes
- WARNING: Turn the ignition off, disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.
- WARNING: If the Occupant Restraint Controller (ORC) is dropped at any time, it must be replaced. Failure to follow these instructions may result in possible serious or fatal injury.
- Replace the ORC. Occupant Restraint Controller - Removal.
- Perform the AIRBAG SYSTEM VERIFICATION TEST. Airbag System Verification Test.
No
- Repair is complete.
- Perform the AIRBAG SYSTEM VERIFICATION TEST. Airbag System Verification Test.
