B1B94

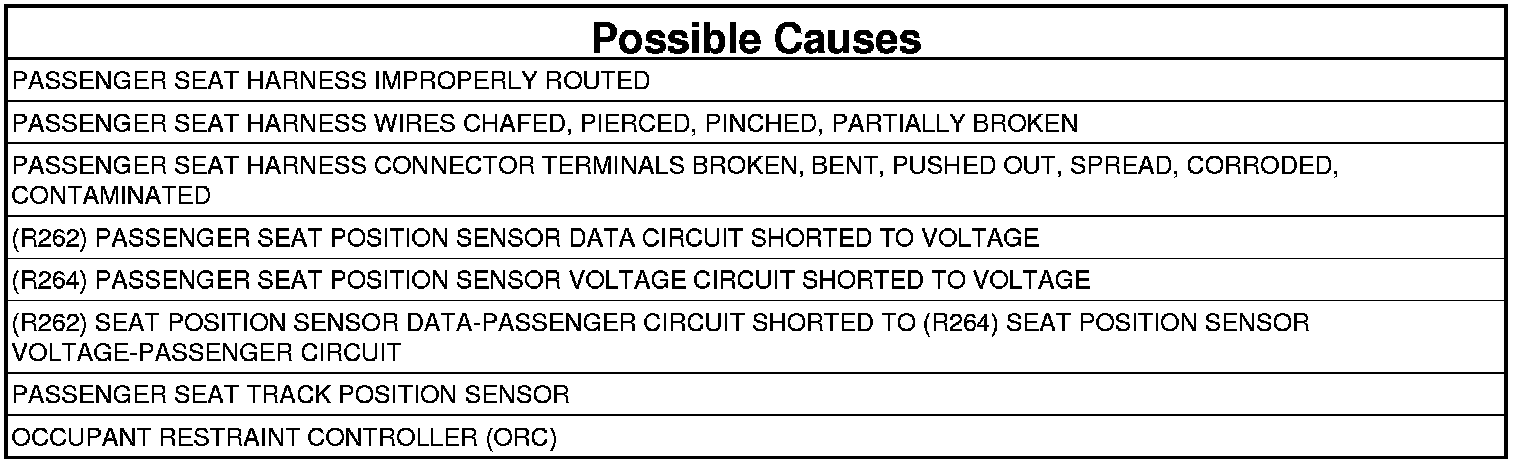

B1B94-PASSENGER SEAT TRACK POSITION SENSOR CIRCUIT HIGH





For a complete wiring diagram, refer to the Wiring Information.

- When Monitored:
While the CAN bus ignition status is in IGN_RUN and the module is configured for a Passenger Seat Track Position Sensor, the module checks the sensor input current ranges.

- Set Condition:
If the module detects that the sensor input is greater than or equal to 20.5 mA. This DTC may set when the current is between 17 mA and 20.5 mA.





1. IDENTIFYING VEHICLE EQUIPMENT

NOTE: Make sure the battery is fully charged.

1. Turn the ignition on.
2. With the scan tool, read ORC active DTCs.

Does the scan tool display active DTC: B1B94-PASSENGER SEAT TRACK POSITION SENSOR CIRCUIT HIGH?

Yes

- Go To 2

No

- Go To 8

2. CHECK FOR ACTIVE INTERNAL FAULTS, IGNITION FAULTS, AND BATTERY FAULTS IN THE OCCUPANT RESTRAINT CONTROLLER (ORC)
1. With the scan tool, read Occupant Restraint Controller (ORC) DTCs.

Does the scan tool display any active DTCs relating to internal faults, ignition faults, or battery faults?

Yes

- Perform the appropriate diagnostic procedure. Testing and Inspection.

No

- Go To 3

3. INSPECT PASSENGER SEAT HARNESS WIRES AND CONNECTORS

WARNING: Turn the ignition off, disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.

1. Using the wiring diagram/schematic as a guide, inspect the passenger seat harness wiring and connectors. Look for chafed, pierced, pinched, or partially broken wires and broken, bent, pushed out, spread, corroded, or contaminated terminals.

Are any of these conditions present?

Yes

- NOTE: Do not attempt to repair the Seat Harness. Replace the Seat Harness if the condition inspecting or testing for is present in the Seat Harness.

- Replace the passenger seat harness.
- Perform the AIRBAG SYSTEM VERIFICATION TEST. Airbag System Verification Test.

No

- Go To 4

4. VERIFY THAT PASSENGER SEAT HARNESS IS ROUTED CORRECTLY
1. Verify that the Passenger Seat Harness is routed correctly.

Is the Passenger Seat Harness routed correctly?

Yes

- Go To 5

No

- Reroute the Passenger Seat Harness as necessary.
- Perform the AIRBAG SYSTEM VERIFICATION TEST. Airbag System Verification Test.

5. CHECK FOR DTC B1B94-PASSENGER SEAT TRACK POSITION SENSOR CIRCUIT HIGH WITH PASSENGER SEAT TRACK POSITION SENSOR DISCONNECTED

WARNING: Turn the ignition off, disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.

1. Disconnect the Passenger Seat Track Position Sensor connector.

WARNING: Turn the ignition on, then reconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.

2. Wait two minutes, and then with the scan tool, read ORC DTCs.

Does the scan tool display: B1B94-PASSENGER SEAT TRACK POSITION SENSOR CIRCUIT HIGH?

Yes

- Go To 6

No

- WARNING: Turn the ignition off, disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.

- Replace the Passenger Seat Track Position Sensor.
- Perform the AIRBAG SYSTEM VERIFICATION TEST. Airbag System Verification Test.

6. CHECK (R262) PASSENGER SEAT POSITION SENSOR DATA CIRCUIT AND (R264) PASSENGER SEAT POSITION SENSOR VOLTAGE CIRCUIT FOR A SHORT TO VOLTAGE





WARNING: Turn the ignition off, disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.

1. Disconnect the both ORC connectors.

WARNING: Turn the ignition on, then reconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.

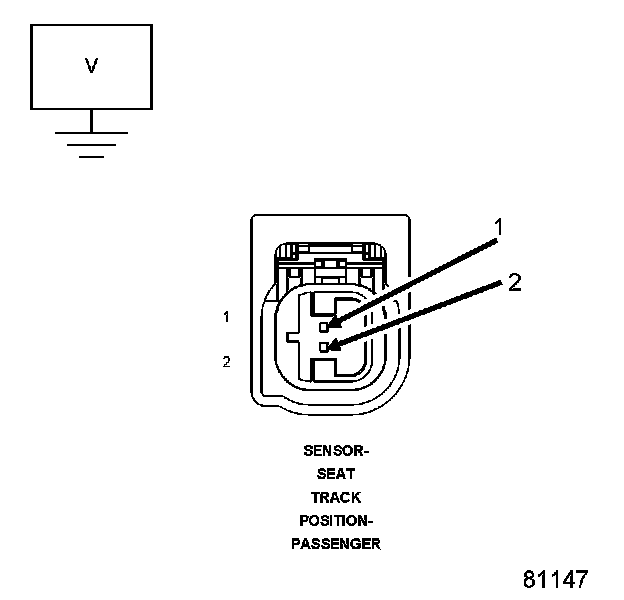

2. Measure the voltage of the (R262) Passenger Seat Position Sensor Data circuit at the Passenger Seat Track Position Sensor connector.
3. Measure the voltage of the (R263) Passenger Seat Position Sensor Voltage circuit at the Passenger Seat Track Position Sensor connector.

Is the voltage above 0.2 of a volt on either circuit?

Yes

- NOTE: Do not attempt to repair the Seat Harness. Replace the Seat Harness if the condition inspecting or testing for is present in the Seat Harness.

- WARNING: Turn the ignition off, disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.

- Replace the Passenger Seat Harness.
- Perform the AIRBAG SYSTEM VERIFICATION TEST. Airbag System Verification Test.

No

- Go To 7

7. CHECK (R262) PASSENGER SEAT POSITION SENSOR DATA CIRCUIT FOR A SHORT TO (R264) PASSENGER SEAT POSITION SENSOR VOLTAGE CIRCUIT





WARNING: Turn the ignition off, disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.

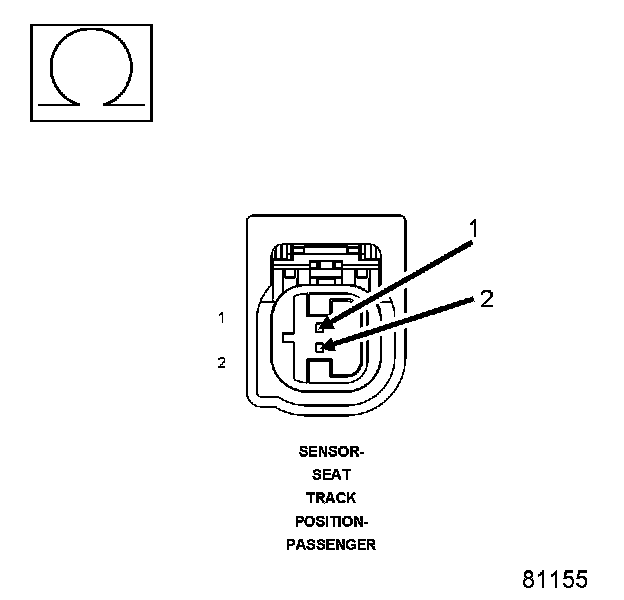

1. Measure the resistance between the (R262) Passenger Seat Position Sensor Data circuit and the (R264) Passenger Seat Position Sensor Voltage circuit in the Passenger Seat Track Position Sensor connector.

Is the resistance below 10k Ohms?

Yes

- NOTE: Do not attempt to repair the Seat Harness. Replace the Seat Harness if the condition inspecting or testing for is present in the Seat Harness.

- Replace the passenger seat harness.
- Perform the AIRBAG SYSTEM VERIFICATION TEST. Airbag System Verification Test.

No

- Replace the ORC.
- Perform the AIRBAG SYSTEM VERIFICATION TEST. Airbag System Verification Test.

8. TEST FOR AN INTERMITTENT CONDITION
1. With the scan tool, record and erase all DTCs from the ORC.
2. If any ACTIVE codes are present they must be resolved before diagnosing any stored codes.

WARNING: Turn the ignition off, disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.

3. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors.
4. Look for chafed, pierced, pinched, or partially broken wires and broken, bent, pushed out, spread, corroded, or contaminated terminals.
5. The following additional checks may assist you in identifying a possible intermittent problem.
6. Reconnect any disconnected components and harness connector.

WARNING: Turn the ignition on, then reconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.

7. With the scan tool monitor active codes as you work through the following steps.

WARNING: Turn the ignition off, disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.

8. Wiggle the wiring harness and connectors of the related airbag circuit or component.
9. If only stored codes return continue the test until the problem area has been isolated.
10. In the previous steps you have attempted to recreate the conditions responsible for setting active DTC in question.

Are any ACTIVE DTCs present?

Yes

- Perform the appropriate diagnostic procedure. Testing and Inspection.

No

- No problem found at this time. Erase all codes before returning vehicle to customer.
