B1B8D

B1B8D-DRIVER SEAT TRACK POSITION SENSOR CIRCUIT LOW

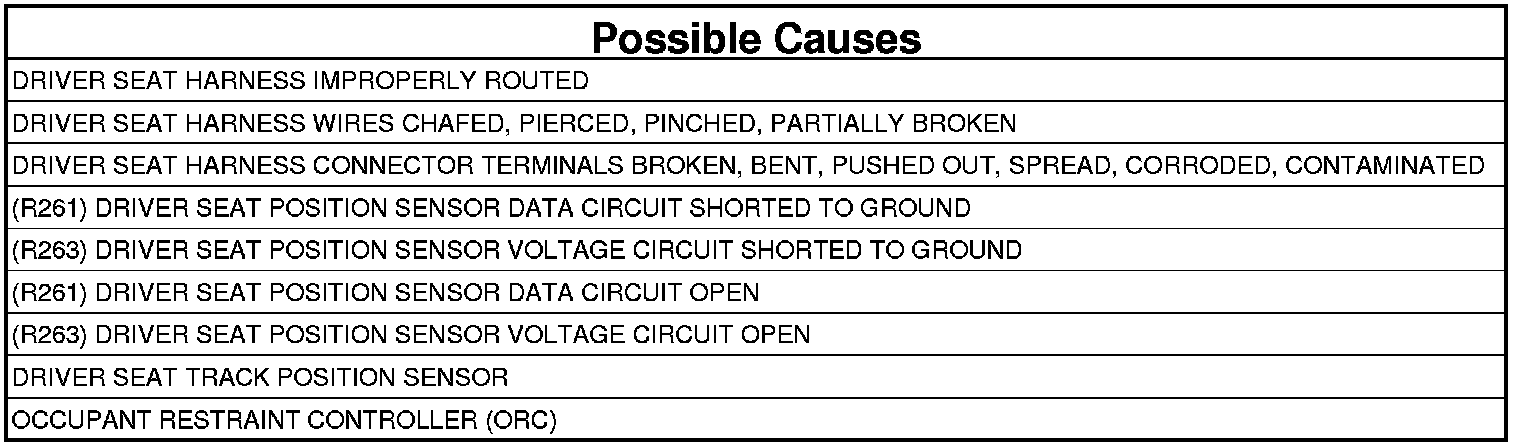

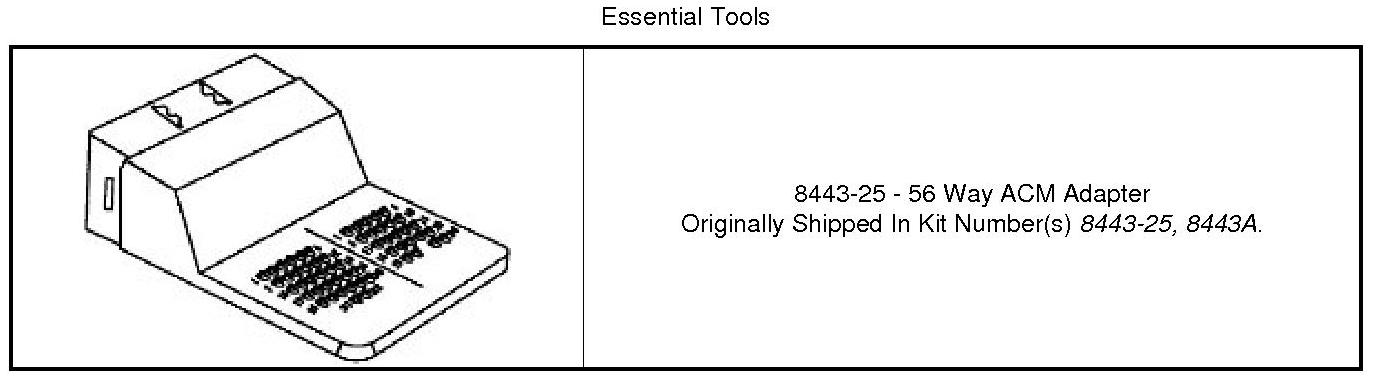

Special Tools:










For a complete wiring diagram, refer to the Wiring Information.

- When Monitored:
While the CAN bus ignition status is in IGN_RUN and the module is configured for a Driver Seat Track Position Sensor, the module checks the sensor input current ranges.

- Set Condition:
If the module detects that the sensor input is less than or equal to 0.3 ma. This DTC may set when the current is between 0.3 mA and 2.0 mA.





1. IDENTIFYING VEHICLE EQUIPMENT

NOTE: Make sure the battery is fully charged.

1. Turn the ignition on.
2. With the scan tool, read ORC active DTCs.

Does the scan tool display active DTC: B1B8D-DRIVER SEAT TRACK POSITION SENSOR CIRCUIT LOW?

Yes

- Go To 2

No

- Perform the AIRBAG SYSTEM INTERMITTENT TEST. Initial Inspection and Diagnostic Overview.

2. CHECK FOR ACTIVE INTERNAL FAULTS, IGNITION FAULTS, AND BATTERY FAULTS IN THE OCCUPANT RESTRAINT CONTROLLER (ORC)
1. With the scan tool, read Occupant restraint Controller (ORC) DTCs.

Does the scan tool display any active DTCs relating to internal faults, ignition faults, or battery faults?

Yes

- Perform the appropriate diagnostic procedure. Testing and Inspection.

No

- Go To 3

3. INSPECT DRIVER SEAT HARNESS WIRES AND CONNECTORS

WARNING: Turn the ignition off, disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.

1. Using the wiring diagram/schematic as a guide, inspect the driver seat harness wiring and connectors. Look for chafed, pierced, pinched, or partially broken wires and broken, bent, pushed out, spread, corroded, or contaminated terminals.

Are any of these conditions present?

Yes

- NOTE: Do not attempt to repair the Seat Harness. Replace the Seat Harness if the condition inspecting or testing for is present in the Seat Harness.

- Replace the driver seat harness.
- Perform the AIRBAG SYSTEM VERIFICATION TEST. Airbag System Verification Test.

No

- Go To 4

4. VERIFY THAT DRIVER SEAT HARNESS IS ROUTED CORRECTLY
1. Verify that the driver seat harness is routed correctly.

Is the Driver Seat Harness routed correctly?

Yes

- Go To 5

No

- Reroute the driver seat harness as necessary.
- Perform the AIRBAG SYSTEM VERIFICATION TEST. Airbag System Verification Test.

5. CHECK (R261) DRIVER SEAT POSITION SENSOR DATA CIRCUIT AND (R263) DRIVER SEAT POSITION SENSOR VOLTAGE CIRCUIT FOR A SHORT TO GROUND

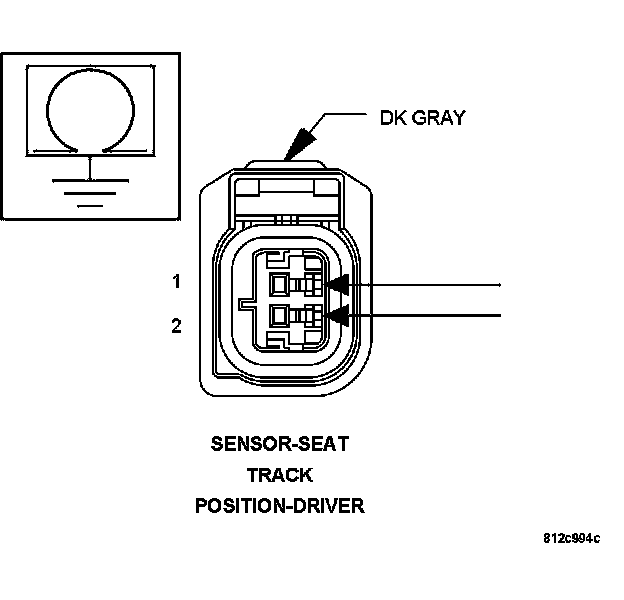

1. Measure the resistance between ground and the (R261) Driver Seat Position Sensor Data circuit cavity 1.
2. Measure the resistance between ground and the (R263) Driver Seat Position Sensor Voltage circuit cavity 2.

Is the resistance below 10k Ohms on either circuit?

Yes

- NOTE: Do not attempt to repair the Seat Harness. Replace the Seat Harness if the condition inspecting or testing for is present in the Seat Harness.

- Replace the Driver Seat Harness.
- Perform the AIRBAG SYSTEM VERIFICATION TEST. Airbag System Verification Test.

No

- Go To 6

6. CHECK (R261) DRIVER SEAT POSITION SENSOR DATA CIRCUIT AND (R263) DRIVER SEAT POSITION SENSOR VOLTAGE CIRCUIT FOR AN OPEN




1. Disconnect the ORC connectors.
2. Connect the SRS Load Tool Adaptor to the ORC C1 connector.

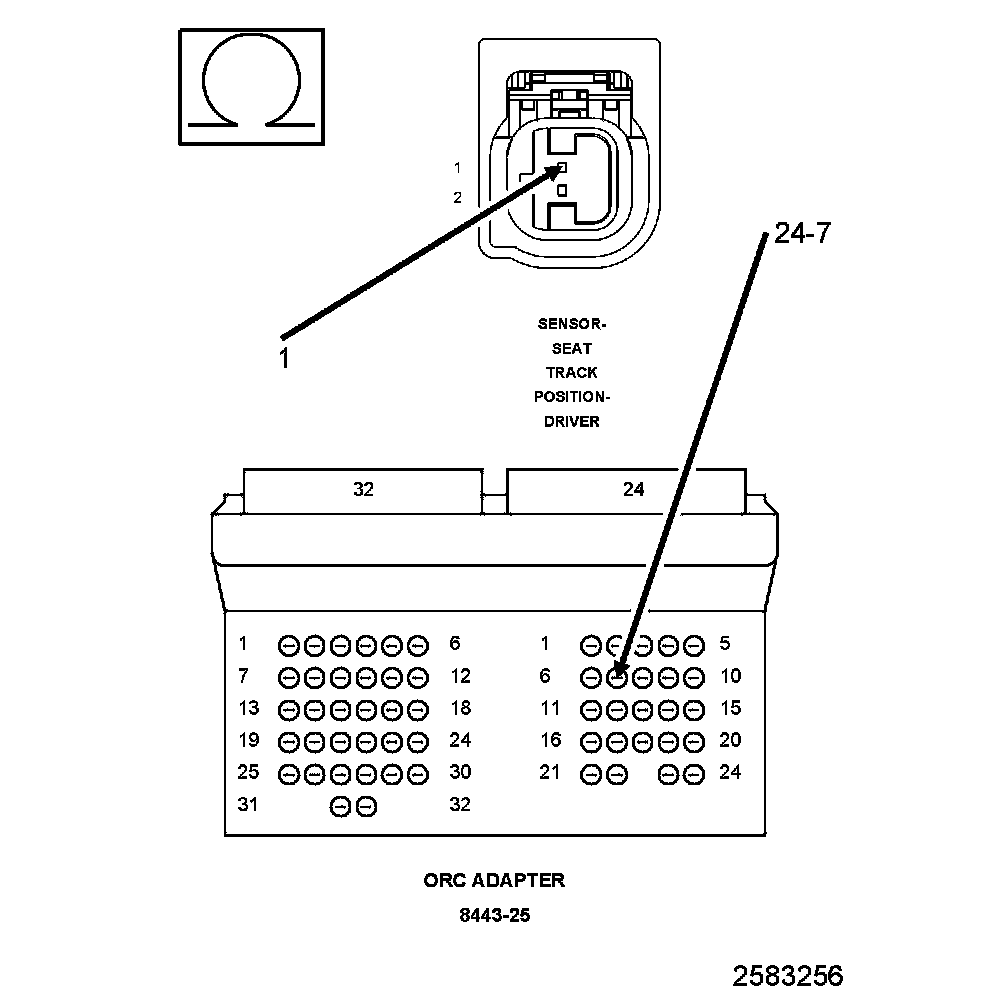

3. Measure the resistance of the (R261) Driver Seat Position Sensor Data circuit between the SRS Load Tool Adaptor cavity 24-7 and the Driver Seat Track Position Sensor connector cavity 1.

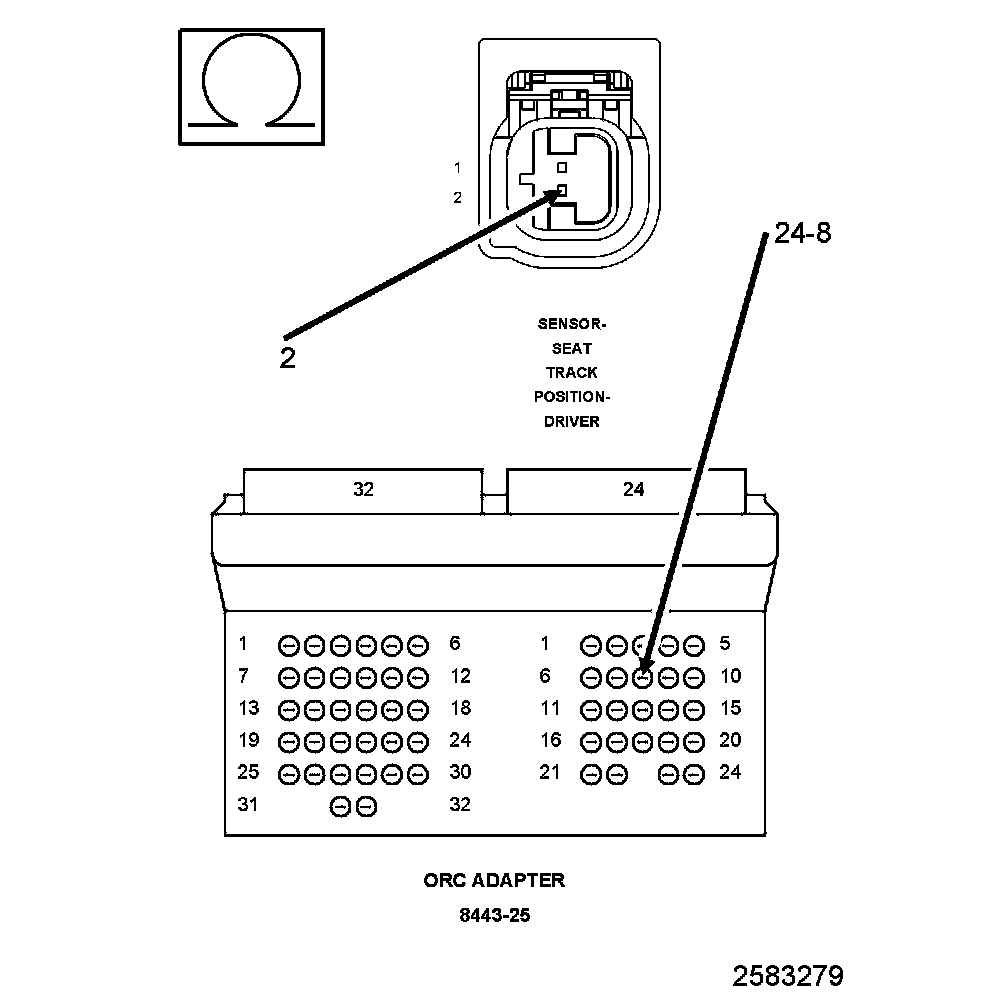

4. Measure the resistance of the (R263) Driver Seat Position Sensor Voltage circuit between the SRS Load Tool Adaptor cavity 24-8 and the Driver Seat Track Position Sensor connector cavity 2.

Is the resistance of either circuit above 5.0 Ohms?

Yes

- NOTE: Do not attempt to repair the Seat Harness. Replace the Seat Harness if the condition inspecting or testing for is present in the Seat Harness.

- Replace the Driver Seat Harness.
- Perform the AIRBAG SYSTEM VERIFICATION TEST. Airbag System Verification Test.

No

- WARNING: Turn the ignition off disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.
WARNING: If the Occupant Restraint Controller (ORC) is dropped at any time, it must be replaced. Failure to take the proper precautions can result in accidental airbag deployment. Failure to follow these instructions may result in possible serious or fatal injury.

- Replace the Occupant Restraint Controller (ORC ).
- Perform the AIRBAG SYSTEM VERIFICATION TEST. Airbag System Verification Test.
