B1B0A
B1B0A-PASSENGER AIRBAG SQUIB 1 CIRCUIT OPEN

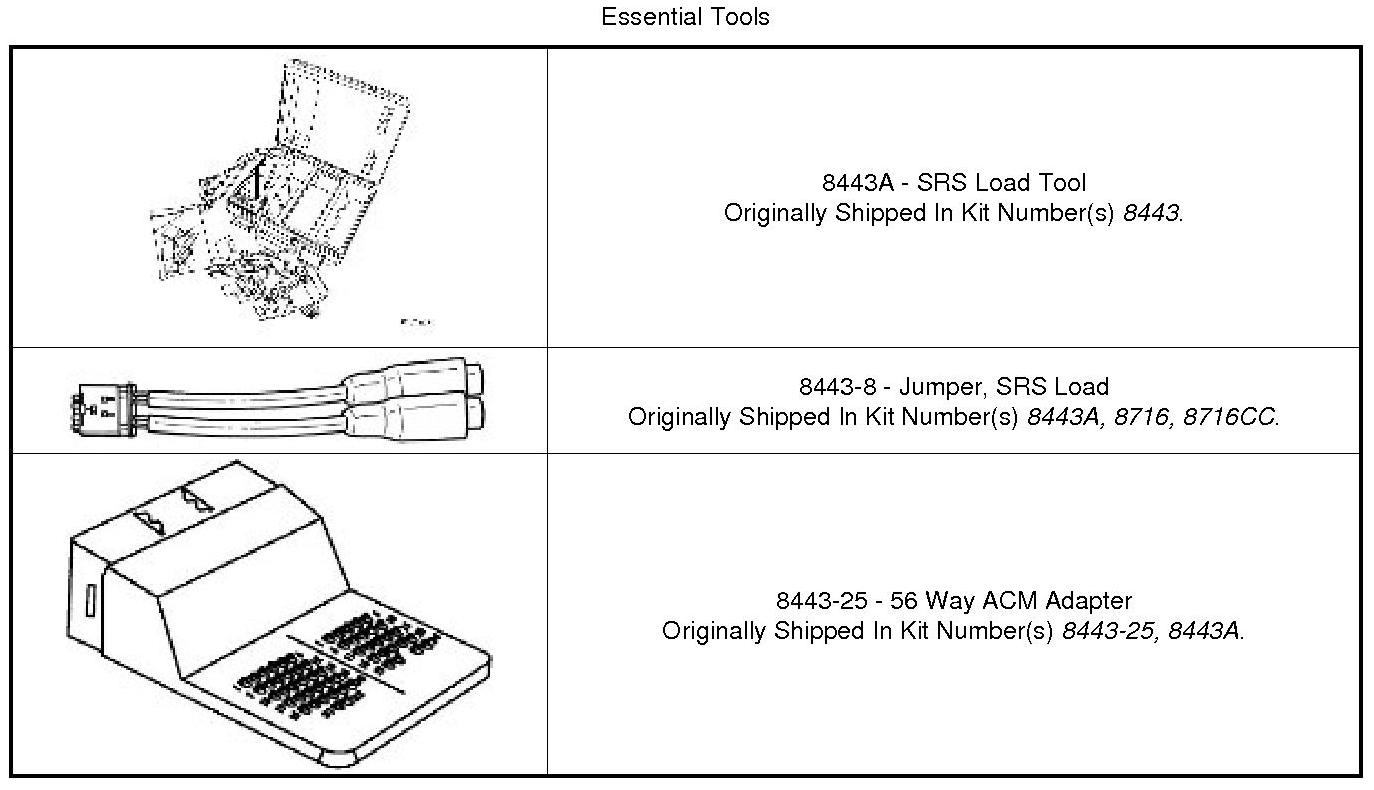

Special Tools:
For a complete wiring diagram, refer to the Wiring Information.
Theory of Operation
When powered, the Occupant Restraint Controller (ORC) sends a test current to the squibs to verify the integrity of the squib and the wiring. These circuits are maintained in a "floating" configuration at the module, (connected to neither power nor ground), as protection against inadvertent deployment. Use of the Supplemental Restraints System (SRS) Load Tool Kit 8443A in the tests below substitutes a suspect squib with a known good component. The use of the SRS Load Tool Adapter tool provides a test point, as well as a method for opening the shorting bar connections within the harness connector.
- When Monitored:
With the ignition on.
- Set Condition:

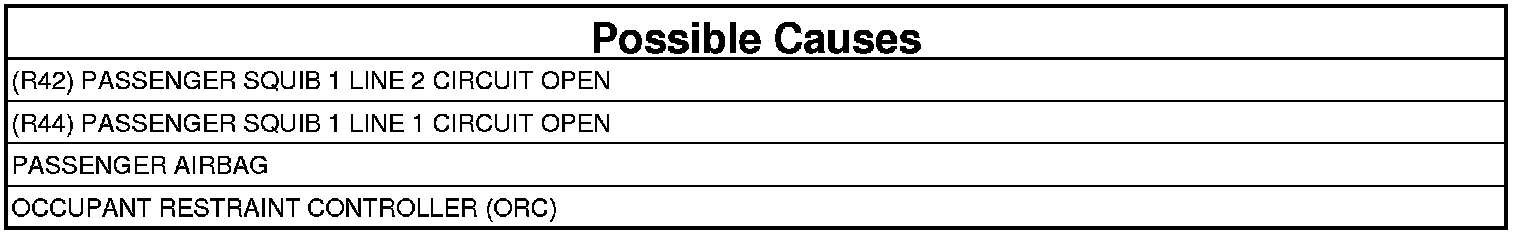

The Occupant Restraint Controller (ORC) monitors the resistance of the Passenger Squib 1 circuits. The ORC will set this DTC if it detects an open or high resistance on the Passenger Squib 1 circuits.
1. DETERMINE ACTIVE OR STORED DTC
NOTE: Make sure that the battery is fully charged.
NOTE: The scan tool, SRS Load Tool Kit , and DVOM are required to perform the following test.
1. Turn the ignition on.
Select ACTIVE or STORED DTC:
ACTIVE DTC
- Go To 2
STORED DTC
- Go To 5
2. CHECK FOR OPEN SQUIB CIRCUITS IN PASSENGER AIRBAG
WARNING: Turn the ignition off disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.
1. Disconnect the Passenger Airbag Squib connectors.
NOTE: Check connectors - Clean and repair as necessary.
2. Connect the SRS Load Tool Kit and SRS Load Tool Jumper to the Passenger Airbag Squib connectors.
WARNING: Turn the ignition on, then reconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.
3. With the scan tool, read the active ORC DTC.
Does the scan tool display: B1B0A-PASSENGER AIRBAG SQUIB 1 CIRCUIT OPEN?
Yes
- Go To 3
No
- Replace the Passenger Airbag.
- Perform the AIRBAG SYSTEM VERIFICATION TEST. Airbag System Verification Test.
3. CHECK THE (R42) PASSENGER SQUIB 1 LINE 2 CIRCUIT FOR AN OPEN
WARNING: Turn the ignition off, disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.
1. Disconnect the SRS Load Tool Kit and SRS Load Tool Jumper from the Passenger Airbag Squib connectors.
2. Disconnect the ORC connectors.
NOTE: Check connectors - Clean and repair as necessary.
3. Connect the SRS Load Tool Adaptor to the ORC connectors.

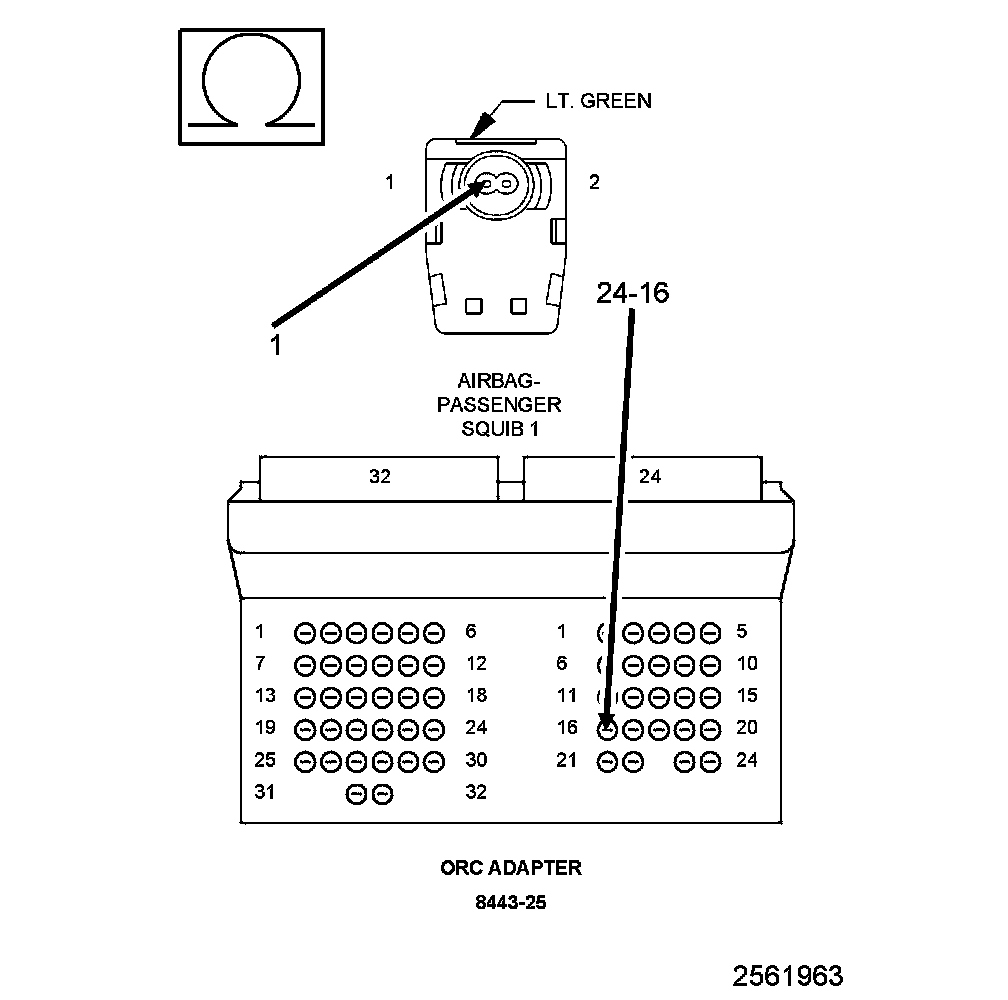

4. Measure the resistance of the (R42) Passenger Squib 1 Line 2 between the Passenger Airbag Squib connector circuit cavity 1 and the SRS Load Tool Adaptor cavity 24-16.
Is the resistance below 1.0 Ohm?
Yes
- Go To 4
No
- Repair the (R42) Passenger Squib 1 Line 2 circuit for an open.
- Perform the AIRBAG SYSTEM VERIFICATION TEST. Airbag System Verification Test.
4. CHECK THE (R44) PASSENGER SQUIB 1 LINE 1 CIRCUIT FOR AN OPEN
1. Measure the resistance of the (R44) Passenger Squib 1 Line 1 circuit between the Passenger Airbag Squib connector circuit cavity 2 and the SRS Load Tool Adaptor cavity 24-15.
Is the resistance below 1.0 Ohm?
Yes
- WARNING: If the Occupant Restraint Controller (ORC) is dropped at any time, it must be replaced. Failure to follow these instructions may result in possible serious or fatal injury.
- Replace the ORC.
- Perform the AIRBAG SYSTEM VERIFICATION TEST. Airbag System Verification Test.
No
- Repair the (R44) Passenger Squib 1 Line 1 circuit for an open.
- Perform the AIRBAG SYSTEM VERIFICATION TEST. Airbag System Verification Test.
5. CHECKING STORED OR INTERMITTENT CODES
NOTE: Diagnose and repair all active codes before diagnosing stored codes.
1. With the scan tool, record and erase all Airbag System Module DTC.
WARNING: Turn the ignition off, disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.
2. Using the wiring diagram/schematic as a guide, inspect the related wiring and connectors for chafed, pierced, pinched, and partially broken wires, and for broken, bent, pushed out, corroded, and contaminated terminals. Repair as necessary.
3. Reconnect all disconnected components and harness connectors.
WARNING: Turn the ignition on, then reconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.
4. With the scan tool, monitor for active codes while performing the following:
- Wiggle the wiring harness and connectors of the related airbag circuit.
- Continue the test until either a code becomes active or the problem area is isolated.
5. In the previous steps you have attempted to recreate the conditions responsible for setting the DTC in question / causing the intermittent condition.
Are any ACTIVE DTC present?
Yes
- Perform the appropriate diagnostic procedure. Testing and Inspection.
No
- No problem found at this time. Erase all codes before returning the vehicle to the customer.
