B181E

B181E-HOOD AJAR INPUT CIRCUIT PERFORMANCE

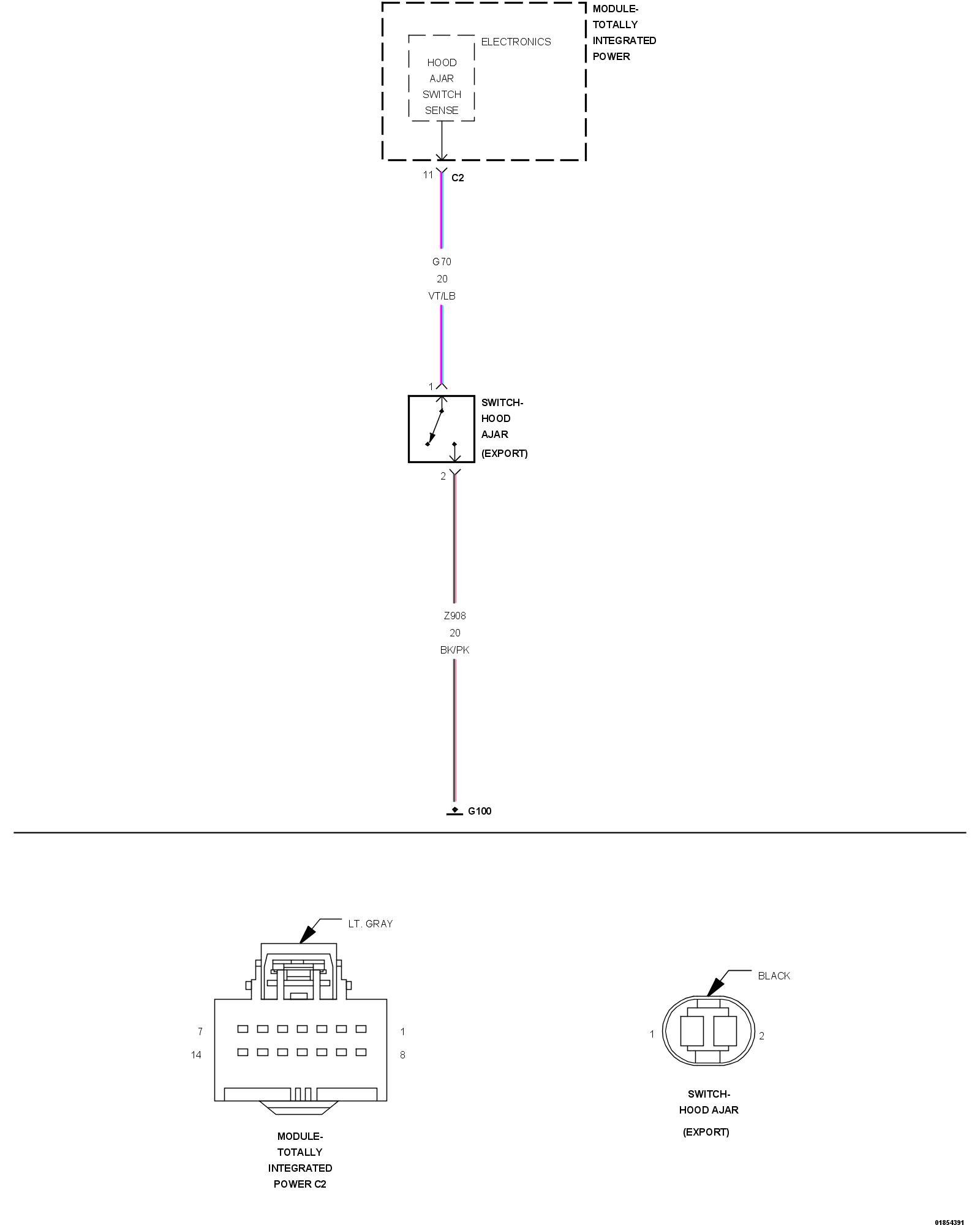

For a complete wiring diagram, refer to the Wiring Information

- When Monitored:
Continuously.

- Set Condition:
When the Totally Integrated Power Module senses 12 Volts on the Hood Ajar Switch Sense circuit for over 10 seconds, this code will set.





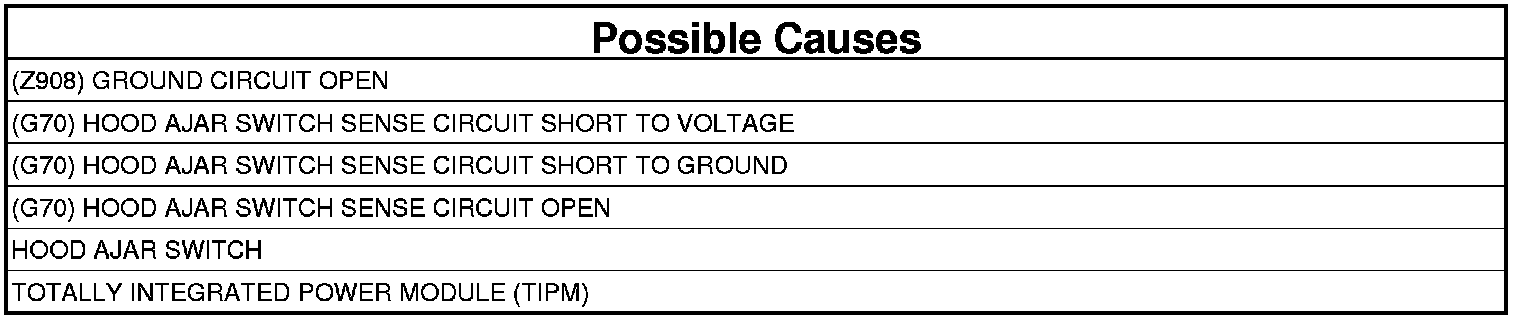

1. TEST FOR INTERMITTENT CONDITION

NOTE: Open the hood and ensure the Hood Ajar Switch is connected before proceeding

1. Using the scan tool, record and erase DTCs
2. Close the hood.
3. Cycle the ignition from on to off.
4. Turn the ignition on.
5. Open then close the hood.
6. Using the scan tool, read DTCs.

Does the scan tool display this DTC as active?

Yes

- Go To 2

No

- The conditions that caused this code to set are not present at this time. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors.
- Perform the BODY VERIFICATION TEST. Body Verification Test

2. INCORRECT HOOD AJAR SWITCH INSTALLED
1. Inspect the retainer ring on the hood ajar switch.
2. A dark brown retainer ring identifies the hood ajar switch used for certain export applications, while a white retainer ring identifies the remote starter system application.

Is the correct switch installed?

Yes

- Go To 3

No

- Replace the Hood Ajar Switch.
- Perform the BODY VERIFICATION TEST. Body Verification Test

3. HOOD AJAR SWITCH
1. Turn the ignition off.
2. Disconnect the Hood Ajar Switch harness connector.
3. Turn the ignition on.
4. Using a scan tool view the Hood Ajar Switch state.
5. Connect a jumper wire across the (G70) Hood Ajar Switch Sense circuit and (Z908) Ground circuit at the Hood Ajar Switch harness connector.

Did the Hood Ajar Switch state change?

Yes

- Replace the Hood Ajar Switch.
- Perform the BODY VERIFICATION TEST. Body Verification Test

No

- Go To 4

4. (Z908) GROUND CIRCUIT OPEN




1. Turn the ignition off.
2. Using a 12-volt Test Light connected to 12-volts, check the (Z908) Ground circuit.

Does the test light illuminate?

Yes

- Go To 5

No

- Repair the (Z908) Ground circuit for an open.
- Perform the BODY VERIFICATION TEST. Body Verification Test

5. (G70) HOOD AJAR SWITCH SENSE CIRCUIT SHORT TO VOLTAGE




1. Disconnect the TIPM C2 harness connector.
2. Turn the ignition on.
3. Measure the voltage between the (G70) Hood Ajar Switch Sense circuit and ground.

Is there any voltage present?

Yes

- Repair the (G70) Hood Ajar Switch Sense circuit for a short to voltage.
- Perform the BODY VERIFICATION TEST. Body Verification Test

No

- Go To 6

6. (G70) HOOD AJAR SWITCH SENSE CIRCUIT SHORT TO GROUND




1. Turn the ignition off.

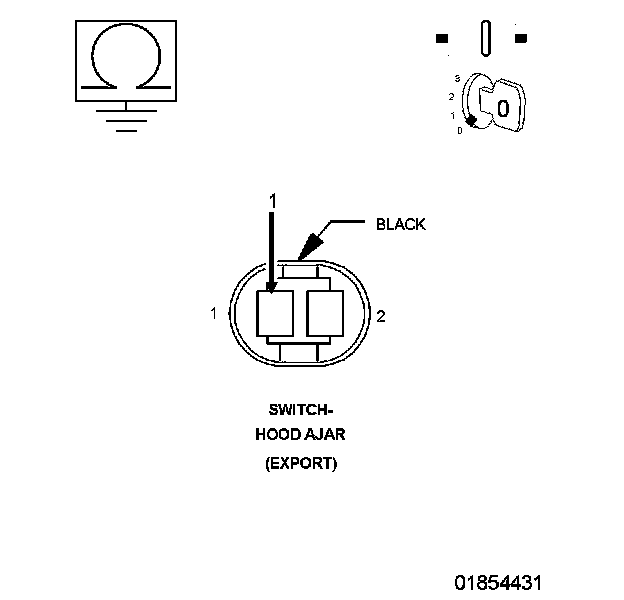

2. Measure the resistance between the (G70) Hood Ajar Switch Sense circuit and ground.

Is the resistance below 10K Ohms?

Yes

- Repair the (G70) Hood Ajar Switch Sense circuit for a short to ground.
- Perform the BODY VERIFICATION TEST. Body Verification Test

No

- Go To 7

7. (G70) HOOD AJAR SWITCH SENSE CIRCUIT OPEN




1. Measure the resistance of the (G70) Hood Ajar Switch Sense circuit between the TIPM C2 connector and the Hood Ajar Switch connector.

Is the resistance below 5.0 Ohms?

Yes

- Replace the Totally Integrated Power Module (TIPM).
- Perform the BODY VERIFICATION TEST. Body Verification Test

No

- Repair the (G70) Hood Ajar Switch Sense circuit for an open.
- Perform the BODY VERIFICATION TEST. Body Verification Test
