B10BB

B10BB-LEFT HEATED SEAT SWITCH INPUT CIRCUIT STUCK

For a complete wiring diagram, refer to the Wiring Information.

- When Monitored:
With the ignition on.

- Set Condition:
If the Cluster (CCN) senses the Left Heated Seat switch input for more than 10 seconds.





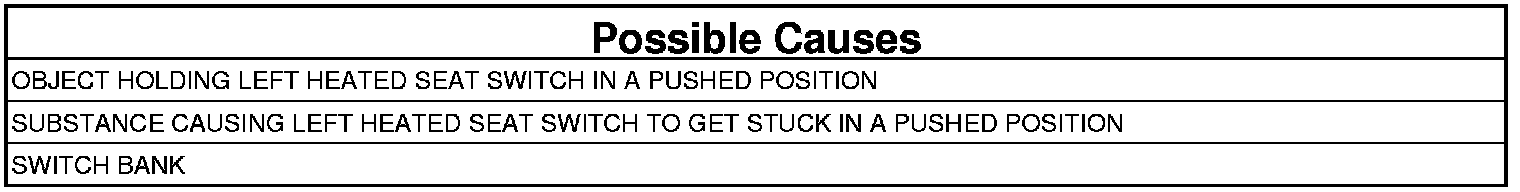

1. INSPECT SWITCH BANK FOR DAMAGE

NOTE: Diagnose and repair all LIN Bus related DTCs before performing this test procedure.

1. Turn the ignition off.
2. Inspect the Switch Bank for damage.

Is the Switch Bank damaged?

Yes

- Replace the Switch Bank.
- Perform the BODY VERIFICATION TEST. Body Verification Test.

No

- Go To 2

2. INSPECT FOR OBJECT OR SUBSTANCE CAUSING LEFT HEATED SEAT SWITCH TO STAY OR STICK IN A PUSHED POSITION
1. Inspect the Left Heated Seat switch for anything that would cause it to stay or stick in a pushed position.

Is anything present that would cause the Left Heated Seat switch to stay or stick in a pushed position?

Yes

- Repair as necessary.
- Perform the BODY VERIFICATION TEST. Body Verification Test.

No

- Go To 3

3. TEST FOR INTERMITTENT CONDITION
1. Turn the ignition on.
2. With the scan tool, record and erase DTCs.
3. Press and release the Left Heated Seat switch several times and then wait 10 seconds.
4. With the scan tool, read DTCs.

Does the scan tool display DTC B10BB-LEFT HEATED SEAT SWITCH INPUT CIRCUIT STUCK?

Yes

- Replace the Switch Bank.
- Perform the BODY VERIFICATION TEST. Body Verification Test.

No

- The conditions that caused this code to set are not present at this time.
- Perform the BODY VERIFICATION TEST. Body Verification Test.
