B1096
B1096-FRONT RIGHT SEAT HEATER CONTROL CIRCUIT LOW

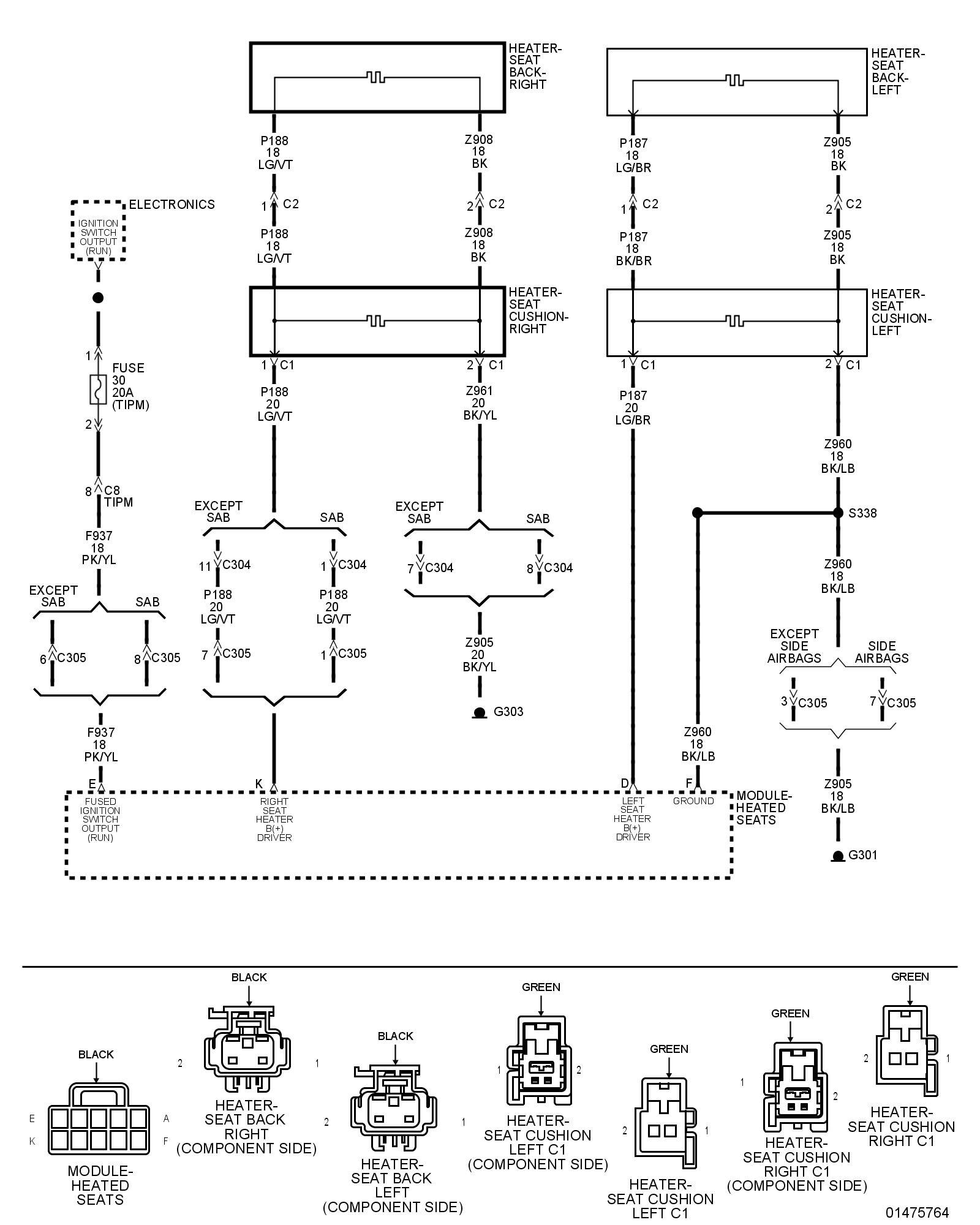

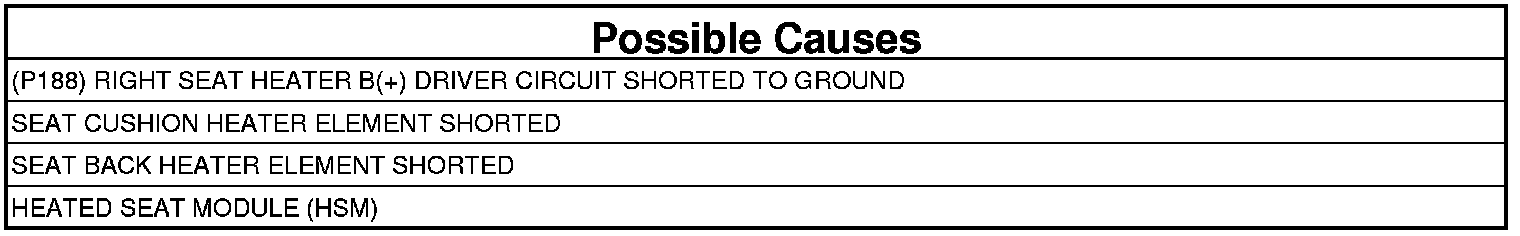

For a complete wiring diagram, refer to the Wiring Information.
- When Monitored:
With the ignition on, during the heated seat operation.
- Set Condition:
This code sets immediately when the Heated Seat Module (HSM) detects that the (P188) Right Seat Heater B(+) Driver circuit is shorted to ground.
1. CHECK FOR AN ACTIVE DTC
1. Turn the ignition on.
2. With the scan tool, record and erase Diagnostic Trouble Codes (DTCs).
3. Operate the Heated Seat Switch in both positions several times.
4. With the scan tool, read DTCs.
Does the scan tool display this DTC as active?
Yes
- Go To 2
No
- Test complete, the condition or conditions that originally set this DTC are not present at this time. Using the wiring diagrams as a guide, check all related splices and connectors for signs of water intrusion, corrosion, pushed out or bent terminals, and correct pin tension. Attempt to reproduce condition by adjusting the seat.
- Perform the BODY VERIFICATION TEST. Body Verification Test.
2. CHECK (P188) RIGHT SEAT HEATER B(+) DRIVER CIRCUIT IN BODY HARNESS FOR A SHORT TO GROUND
1. Turn the ignition off.

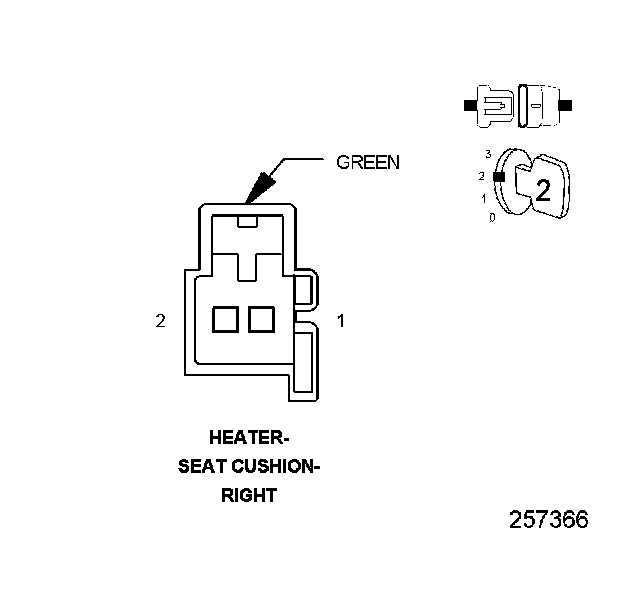

2. Disconnect the Right Seat Cushion Heater harness connector.
NOTE: Check connectors. Clean and repair as necessary.
3. Turn the ignition on.
4. With the scan tool, erase DTCs.
5. Operate the Heated Seat Switch in both positions several times.
6. With the scan tool, read DTCs.
Is DTC B1096-FRONT RIGHT SEAT HEATER CONTROL CIRCUIT LOW active?
Yes
- Go To 3
No
- Go To 4
3. CHECK (P188) RIGHT SEAT HEATER B(+) DRIVER CIRCUIT FOR A SHORT TO GROUND
1. Turn the ignition off.
2. Disconnect the HSM harness connector.
NOTE: Check connectors. Clean and repair as necessary.

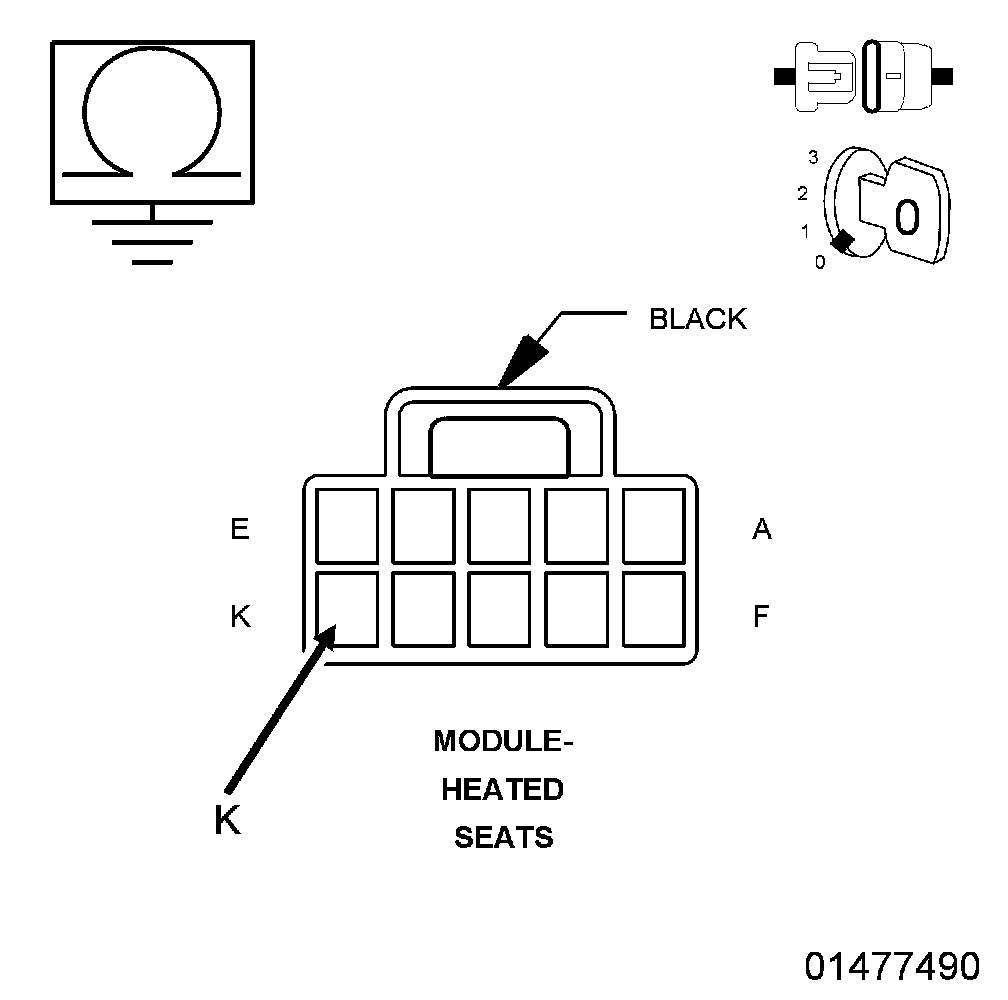

3. Measure the resistance of the (P188) Right Seat Heater B(+) Driver circuit between ground and the HSM harness connector.
Is the resistance below 10K Ohms?
Yes
- Repair the (P188) Right Seat Heater B(+) Driver circuit for a short to ground.
- Perform the BODY VERIFICATION TEST. Body Verification Test.
No
- Go To 4
4. CHECK RIGHT SEAT CUSHION HEATER FOR A SHORT TO GROUND
1. Turn the ignition off.
2. Reconnect the Right Seat Cushion Heater harness connector.

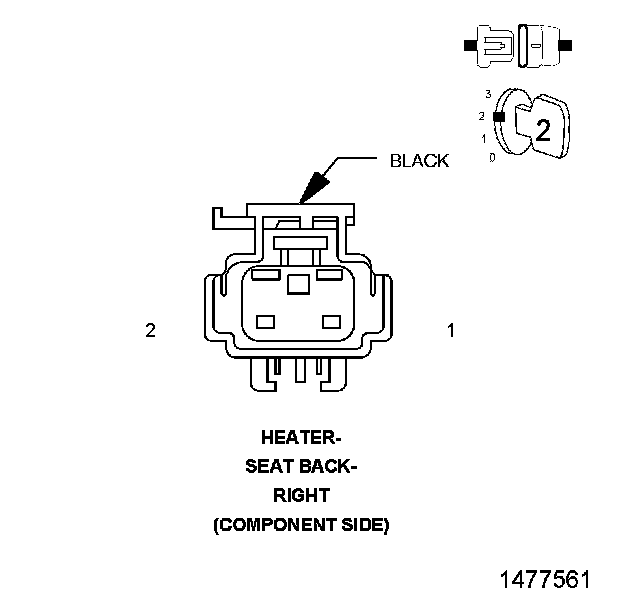

3. Disconnect the Right Seat Back Heater harness connector.
NOTE: Check connectors. Clean and repair as necessary.
4. Turn the ignition on.
5. With the scan tool, erase DTCs.
6. Operate the Heated Seat Switch in both positions several times.
7. With the scan tool, read DTCs.
Is DTC B1096-FRONT RIGHT SEAT HEATER CONTROL CIRCUIT LOW active?
Yes
- Replace the shorted Right Seat Cushion Heater Element.
- Perform the BODY VERIFICATION TEST. Body Verification Test.
No
- Replace the Right Seat Back Heater Element.
- Perform the BODY VERIFICATION TEST. Body Verification Test.
